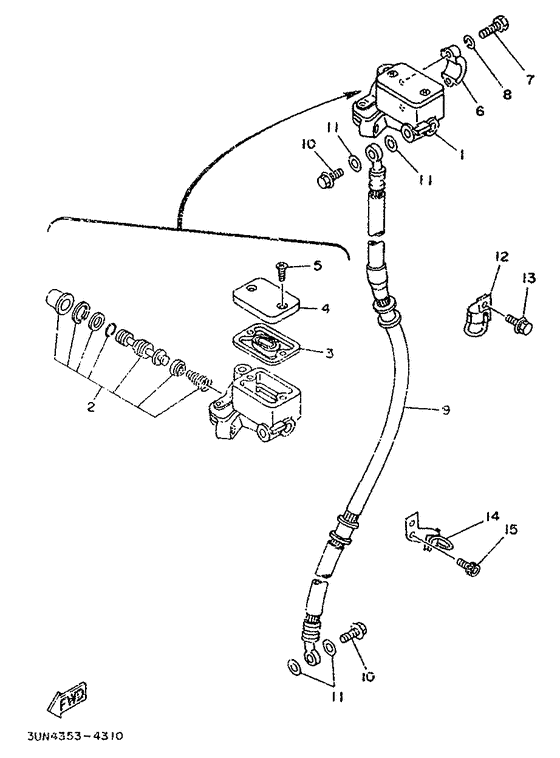

Front master cylinder Diagram Yamaha DT50 DT50
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UN5
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3RW-25870-02-00 Master Cylinder Sub Assembly (3 |
3RW-25870-02-00 |
from US $191.36 |
||
| replacement | |||||
|
01
|
01
4GY-25870-02-00 Master Cylinder Sub Assy |
4GY-25870-02-00 |
from US $191.36 |
||
|
02
|
02
3RW-W0041-02-00 Cylinder Kit, Master |
3RW-W0041-02-00 |
from US $40.32 |
||
| replacements | |||||
|
02
|
02
5CG-W0041-00-00
Cylinder Kit, Master
|
5CG-W0041-00-00 |
— | ||
|
02
|
02
5RS-25807-03-00 Cylinder Kit, Master |
5RS-25807-03-00 |
from US $42.51 |
||
|
03
|
03
3RW-25854-00-00 Diaphragm, Reservoir |
3RW-25854-00-00 |
from US $10.47 |
||
|
04
|
04
4GY-25852-00-00 Cap, Reservoir |
4GY-25852-00-00 |
from US $20.94 |
||
| replacement | |||||
|
04
|
04
4GY-25852-01-00 Cap, Reservoir |
4GY-25852-01-00 |
from US $20.94 |
||
|
05
|
05
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
05
|
05
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.43 |
||
|
06
|
06
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.16 |
||
|
07
|
07
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
07
|
07
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
|
08
|
08
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $0.90 |
||
|
09
|
09
3UN-25872-00-00 Hose, Brake 1 |
3UN-25872-00-00 |
US $92.80 |
||
|
10
|
10
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $2.99 |
||
|
11
|
11
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.13 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $0.80 |
||
|
12
|
12
3RW-25875-00-00 Holder, Brake Hose 1 |
3RW-25875-00-00 |
from US $14.51 |
||
|
13
|
13
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.05 |
||
| replacement | |||||
|
13
|
13
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.05 |
||
|
14
|
14
3UN-25876-00-00
Holder, Brake Hose 2
|
3UN-25876-00-00 |
— | ||
|
15
|
15
91316-06010-00 Bolt, Socket Head |
91316-06010-00 |
from US $0.90 |
||
| replacement | |||||
|
15
|
15
91317-06010-00 Bolt |
91317-06010-00 |
from US $0.90 |
||
