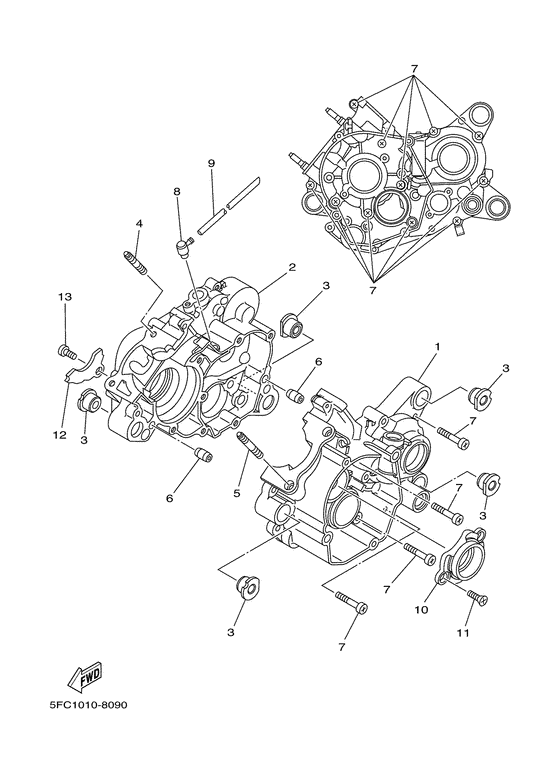

Crankcase Diagram Yamaha DT50 DT50
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UN7
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5FC-15111-00-00
Crankcase 1
|
5FC-15111-00-00 |
— | ||
|
02
|
02
5FC-15121-00-00 Crankcase 2 |
5FC-15121-00-00 |
US $233.78 |
||
|
03
|
03
4EU-15317-00-00 Spacer, Engine Mount |
4EU-15317-00-00 |
US $29.53 |
||
|
04
|
04
90116-08318-00 Bolt, Stud |
90116-08318-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.70 |
||
|
05
|
05
90116-08388-00 Bolt, Stud |
90116-08388-00 |
from US $3.32 |
||
|
06
|
06
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
07
|
07
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
08
|
08
120-15371-00-00 Breather |
120-15371-00-00 |
US $3.68 |
||
| replacement | |||||
|
08
|
08
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.34 |
||
|
09
|
09
904-45097-77-00 Hose (L300) |
904-45097-77-00 |
from US $6.52 |
||
| replacement | |||||
|
09
|
09
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
10
|
10
4BA-15128-00-00 Holder |
4BA-15128-00-00 |
US $45.03 |
||
|
11
|
11
90151-06041-00 Screw, Flat Head |
90151-06041-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
12
|
12
4BA-15492-00-00 Cover |
4BA-15492-00-00 |
US $4.26 |
||
|
13
|
13
90157-06071-00 Screw, Pan Head |
90157-06071-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
