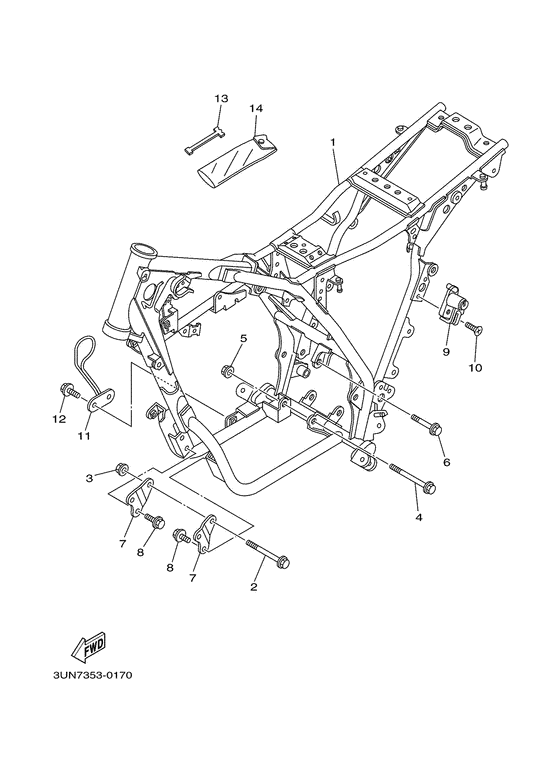

Frame Diagram Yamaha DT50 DT50
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UN7
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UN-21110-00-00
Frame comp
Ur for dpbse |
3UN-21110-00-00 |
— | ||
|
01
|
01
3UN-21110-10-00
Frame comp
Ur for vrc7,yb |
3UN-21110-10-00 |
— | ||
|
02
|
02
90105-10392-00 Bolt, Flange |
90105-10392-00 |
from US $4.68 |
||
|
03
|
03
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
03
|
03
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
04
|
04
90105-10392-00 Bolt, Flange |
90105-10392-00 |
from US $4.68 |
||
|
05
|
05
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
05
|
05
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
06
|
06
90105-10402-00 Bolt, Flange |
90105-10402-00 |
from US $3.83 |
||
|
07
|
07
3UN-21417-00-00
Bracket, front lower 1
|
3UN-21417-00-00 |
— | ||
|
08
|
08
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
09
|
09
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
10
|
10
90151-06025-00 Screw, Countersunk |
90151-06025-00 |
from US $1.98 |
||
|
11
|
11
3UN-2147A-00-00
Guard, engine 1
|
3UN-2147A-00-00 |
— | ||
|
12
|
12
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.56 |
||
|
13
|
13
2U2-28100-00-00
Tool Kit
|
2U2-28100-00-00 |
— | ||
| replacement | |||||
|
13
|
13
2U2-W2810-00-00
Tool Kit
|
2U2-W2810-00-00 |
— | ||
|
14
|
14
3M7-15361-00-00
Gauge, Level
|
3M7-15361-00-00 |
— | ||
