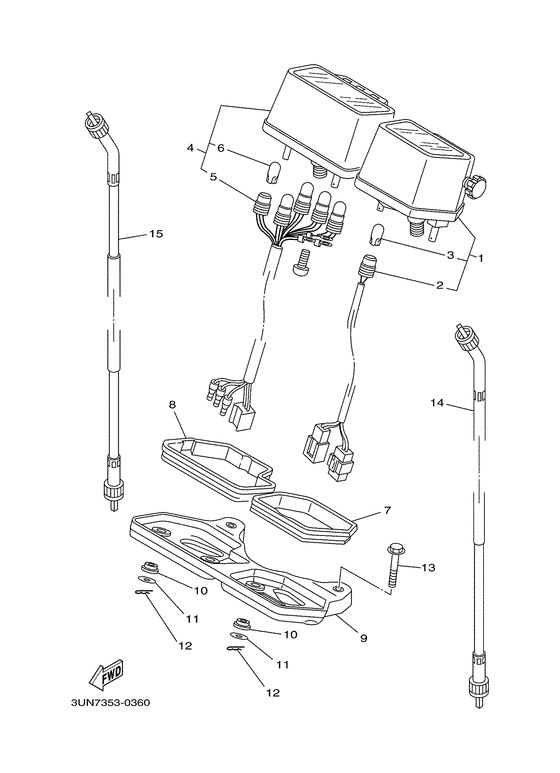

Meter Diagram Yamaha DT50 DT50
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UN7
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UN-83570-00-00
Speedometer assy
|
3UN-83570-00-00 |
— | ||
|
02
|
02
3UN-83536-00-00
Socket, meter
|
3UN-83536-00-00 |
— | ||
|
03
|
03
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
|
04
|
04
3RM-83540-00-00
Tachometer Assy
|
3RM-83540-00-00 |
— | ||
|
05
|
05
17F-83520-00-00
Socket Cord Assy
|
17F-83520-00-00 |
— | ||
|
06
|
06
4R0-83517-00-00 Bulb (12V-3.4W T10) |
4R0-83517-00-00 |
US $4.25 |
||
| replacements | |||||
|
06
|
06
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
06
|
06
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
|
07
|
07
5Y1-83513-00-00 Damper |
5Y1-83513-00-00 |
from US $18.99 |
||
|
08
|
08
17F-83541-00-00
Damper
|
17F-83541-00-00 |
— | ||
|
09
|
09
17F-83519-00-00
Bracket, Meter
|
17F-83519-00-00 |
— | ||
|
10
|
10
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
10
|
10
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
11
|
11
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.28 |
||
|
12
|
12
437-83525-00-00 Clip |
437-83525-00-00 |
US $1.84 |
||
| replacement | |||||
|
12
|
12
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
13
|
13
95807-06030-00 Bolt, Flange |
95807-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
14
|
14
1KH-83550-04-00 Speedometer Cable Assy |
1KH-83550-04-00 |
US $30.18 |
||
|
15
|
15
3UN-83560-00-00
Tachometer cable assy
|
3UN-83560-00-00 |
— | ||
