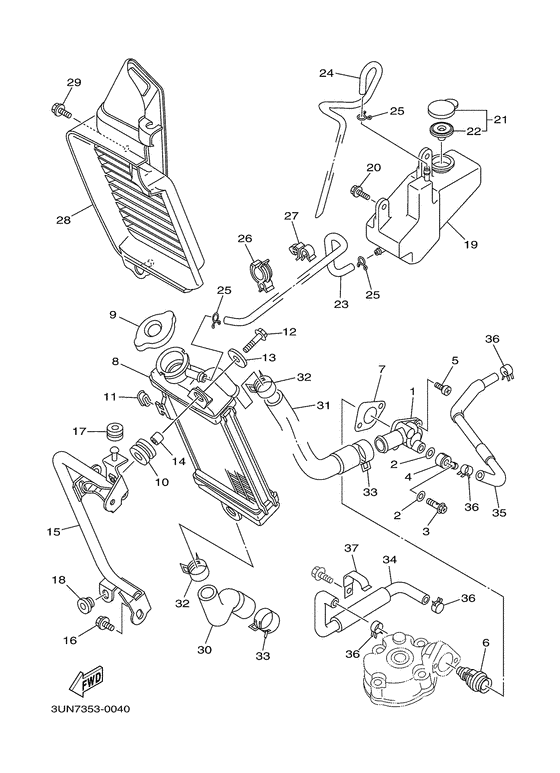

Radiator & hose Diagram Yamaha DT50 DT50
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UN7
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UN-12469-00-00
Joint 1
|
3UN-12469-00-00 |
— | ||
|
02
|
02
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.28 |
||
|
03
|
03
90401-06115-00 Bolt, Union |
90401-06115-00 |
from US $4.57 |
||
| replacement | |||||
|
03
|
03
90401-06003-00 Bolt, Union |
90401-06003-00 |
from US $4.57 |
||
|
04
|
04
90405-06044-00 Union |
90405-06044-00 |
from US $45.02 |
||
|
05
|
05
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
06
|
06
4KJ-12411-00-00 Thermostat |
4KJ-12411-00-00 |
US $53.93 |
||
|
07
|
07
4BA-12414-00-00 Gasket, Cover |
4BA-12414-00-00 |
from US $5.53 |
||
|
08
|
08
17W-12461-10-00
Radiator assy
|
17W-12461-10-00 |
— | ||
|
09
|
09
22W-12462-00-00
Cap, Radiator
|
22W-12462-00-00 |
— | ||
| replacements | |||||
|
09
|
09
1B3-12462-00-00 Cap, Radiator |
1B3-12462-00-00 |
from US $38.78 |
||
|
09
|
09
4FL-12462-00-00 Cap, Radiator |
4FL-12462-00-00 |
from US $29.88 |
||
|
10
|
10
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.56 |
||
|
11
|
11
90480-01327-00
Grommet
|
90480-01327-00 |
— | ||
| replacement | |||||
|
11
|
11
90480-01438-00
Grommet
|
90480-01438-00 |
— | ||
|
12
|
12
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
12
|
12
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
13
|
13
90201-060A3-00 Washer, Plate |
90201-060A3-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
14
|
14
90387-0714B-00 Collar |
90387-0714B-00 |
from US $1.98 |
||
| replacement | |||||
|
14
|
14
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
15
|
15
3UN-12464-00-00
Stay, radiator
|
3UN-12464-00-00 |
— | ||
|
16
|
16
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
17
|
17
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
18
|
18
90480-10070-00 Grommet |
90480-10070-00 |
from US $1.98 |
||
| replacement | |||||
|
18
|
18
904-80100-17-00 Grommet |
904-80100-17-00 |
from US $1.98 |
||
|
19
|
19
3UN-21871-00-00
Tank, recovery
|
3UN-21871-00-00 |
— | ||
|
20
|
20
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
21
|
21
1AA-21815-00-00 Cap |
1AA-21815-00-00 |
from US $5.96 |
||
|
22
|
22
1AA-21874-00-00 Gasket |
1AA-21874-00-00 |
from US $1.70 |
||
|
23
|
23
3UN-21816-00-00
Pipe 1
|
3UN-21816-00-00 |
— | ||
|
24
|
24
3UN-21877-00-00
Pipe, overflow
|
3UN-21877-00-00 |
— | ||
|
25
|
25
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
26
|
26
90464-20178-00 Clamp |
90464-20178-00 |
from US $1.70 |
||
|
27
|
27
90464-09129-00 Clamp |
90464-09129-00 |
from US $1.98 |
||
|
28
|
28
17W-12467-30-00
Cover, Radiator
Ur for vrc7, yb |
17W-12467-30-00 |
— | ||
|
28
|
28
17W-12467-80-00
Cover, radiator
Ur for dpbmc |
17W-12467-80-00 |
— | ||
|
29
|
29
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
30
|
30
3UN-12481-00-00
Pipe 1
|
3UN-12481-00-00 |
— | ||
|
31
|
31
3UN-12482-00-00
Pipe 2
|
3UN-12482-00-00 |
— | ||
|
32
|
32
90467-22157-00 Clip |
90467-22157-00 |
US $6.17 |
||
|
33
|
33
90467-23109-00 Clip |
90467-23109-00 |
from US $1.84 |
||
| replacement | |||||
|
33
|
33
90467-23067-00 Clip |
90467-23067-00 |
from US $1.84 |
||
|
34
|
34
5FC-12484-00-00 Pipe 4 |
5FC-12484-00-00 |
US $20.83 |
||
|
35
|
35
3UN-12485-00-00
Pipe 5
|
3UN-12485-00-00 |
— | ||
|
36
|
36
90467-10039-00 Clip |
90467-10039-00 |
from US $1.35 |
||
|
37
|
37
90461-06080-00 Clamp |
90461-06080-00 |
from US $2.41 |
||
| replacement | |||||
|
37
|
37
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
