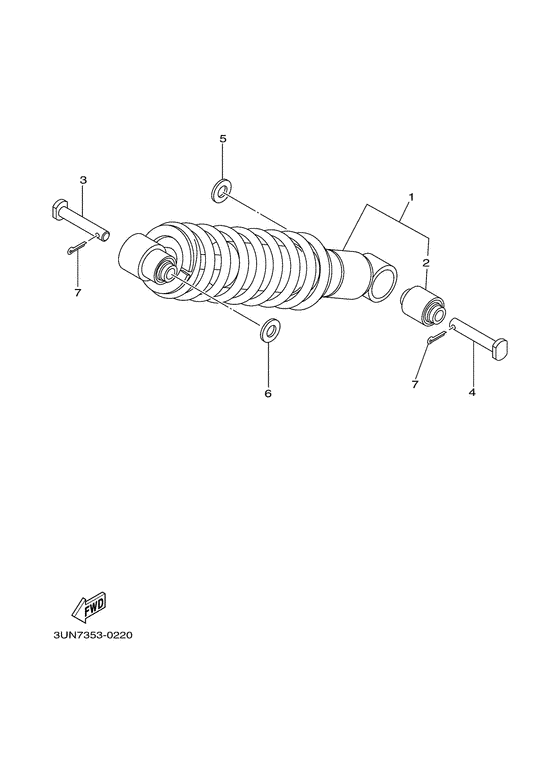

Rear suspension Diagram Yamaha DT50 DT50
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UN7
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UN-22210-00-00 Shock Absorber Assy, Rear |
3UN-22210-00-00 |
US $766.92 |
||
|
02
|
02
1YW-22216-00-00 Bush, Rear Shock Absorber |
1YW-22216-00-00 |
from US $27.77 |
||
|
03
|
03
90240-12093-00 Pin, Clevis |
90240-12093-00 |
from US $5.58 |
||
|
04
|
04
90240-12091-00
Pin, Clevis
|
90240-12091-00 |
— | ||
|
05
|
05
92907-12600-00 Washer, Plate |
92907-12600-00 |
from US $1.42 |
||
|
06
|
06
90201-122H2-00 Washer, Plate |
90201-122H2-00 |
US $1.56 |
||
| replacement | |||||
|
06
|
06
90201-12631-00 Washer, Plate (583) |
90201-12631-00 |
from US $1.56 |
||
|
07
|
07
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
07
|
07
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
