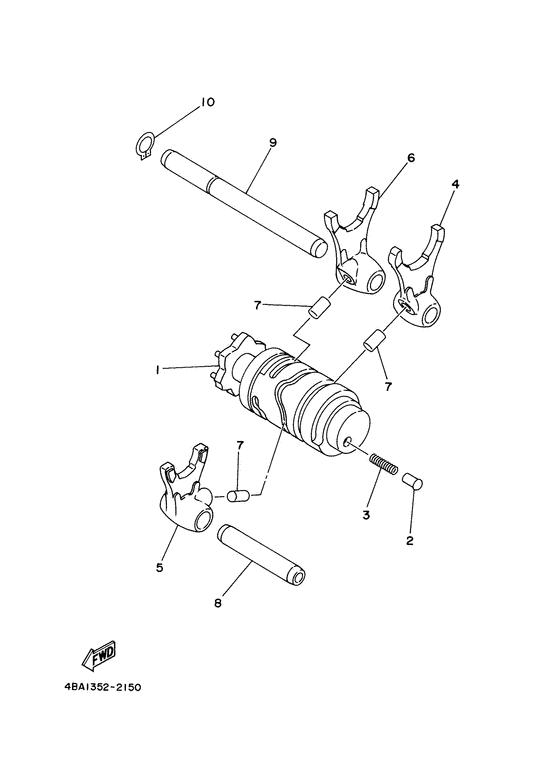

Shift Cam & Fork Diagram Yamaha DT50 DT50
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UN7
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4EU-18540-00-00
Shift Cam Assy
|
4EU-18540-00-00 |
— | ||
|
02
|
02
4BA-18542-00-00 Point, Neutral |
4BA-18542-00-00 |
from US $12.53 |
||
|
03
|
03
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.84 |
||
|
04
|
04
4ES-18511-02-00 Fork, Shift 1 |
4ES-18511-02-00 |
from US $39.79 |
||
|
05
|
05
5R2-18512-00-00 Fork, Shift 2 |
5R2-18512-00-00 |
from US $30.32 |
||
|
06
|
06
4ES-18513-01-00 Fork, Shift 3 |
4ES-18513-01-00 |
from US $43.11 |
||
|
07
|
07
90250-06013-00 Pin, Straight |
90250-06013-00 |
from US $1.70 |
||
|
08
|
08
4BA-18531-00-00 Bar, Shift Fork Guide 1 |
4BA-18531-00-00 |
from US $23.66 |
||
|
09
|
09
4BA-18535-00-00 Bar, Shift Fork Guide 2 |
4BA-18535-00-00 |
from US $18.14 |
||
|
10
|
10
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.34 |
