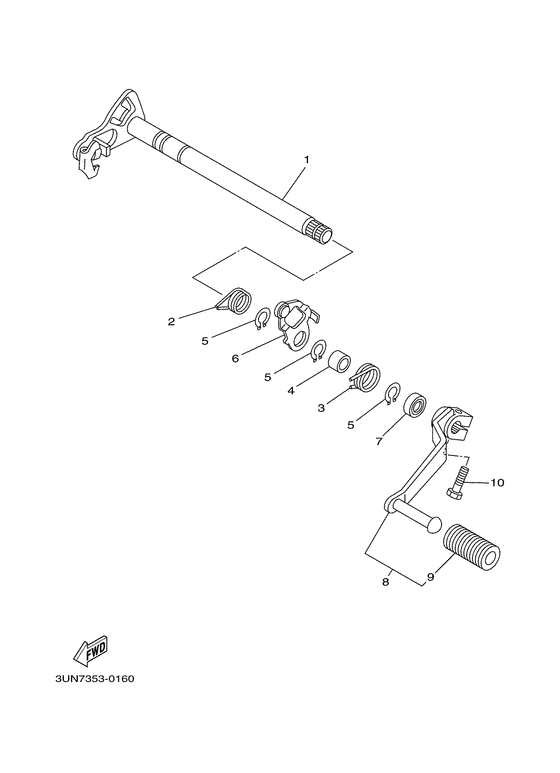

Shift shaft Diagram Yamaha DT50 DT50
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UN7
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4KJ-18101-00-00 Shift Shaft Assy |
4KJ-18101-00-00 |
US $59.37 |
||
|
02
|
02
90508-32553-00 Spring, Torsion |
90508-32553-00 |
from US $7.65 |
||
|
03
|
03
90508-244B7-00 Spring, Torsion |
90508-244B7-00 |
US $2.41 |
||
|
04
|
04
90387-126Y7-00 Collar |
90387-126Y7-00 |
from US $6.02 |
||
|
05
|
05
99001-10600-00 Circlip |
99001-10600-00 |
from US $1.35 |
||
| replacement | |||||
|
05
|
05
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
06
|
06
4KJ-18140-00-00 Stopper Lever Assy |
4KJ-18140-00-00 |
US $21.15 |
||
|
07
|
07
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $4.64 |
||
|
08
|
08
2A6-18110-00-00 Shift Pedal Assy |
2A6-18110-00-00 |
from US $17.54 |
||
|
09
|
09
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
10
|
10
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
