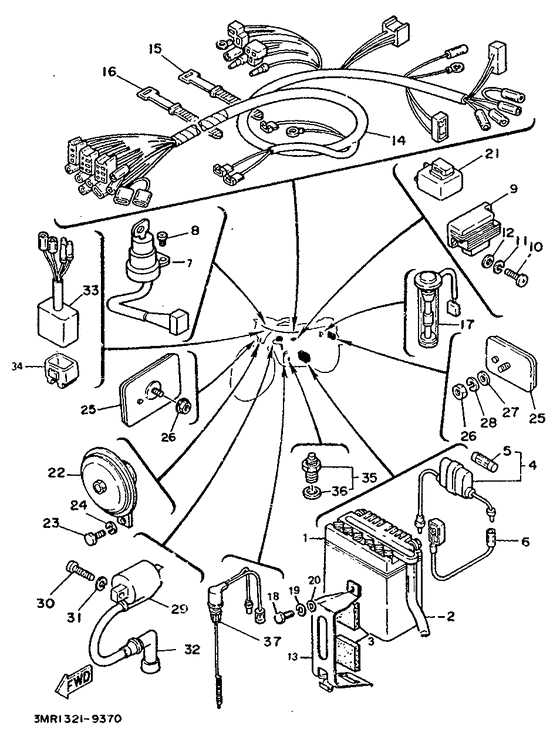

Electrical 1 Diagram Yamaha DT50 DT50
- Year
- 1992
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4AD2
- Sales region
- Sweden (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HL-82110-00-00
Battery Assy (Gm3-3A)
|
3HL-82110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
9079E-Y0007-00
Battery (Yb3L-A)
|
9079E-Y0007-00 |
— | ||
|
02
|
02
90445-08171-00
Pipe, Breather
|
90445-08171-00 |
— | ||
| replacements | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
2RH-21826-00-00
Pipe, Breather
|
2RH-21826-00-00 |
— | ||
|
03
|
03
3HL-H2121-00-00
Pad, Battery
|
3HL-H2121-00-00 |
— | ||
|
04
|
04
5T8-H2150-00-00
Fuse Holder Assy
|
5T8-H2150-00-00 |
— | ||
|
05
|
05
5T8-H2151-00-00
Fuse
|
5T8-H2151-00-00 |
— | ||
| replacement | |||||
|
05
|
05
1A0-82151-00-00 Fuse (12V-10A) |
1A0-82151-00-00 |
from US $4.96 |
||
|
06
|
06
10W-82115-00-00 Wire, Plus Lead |
10W-82115-00-00 |
US $20.83 |
||
|
07
|
07
3HL-H2510-10-00
Main Switch Assy
|
3HL-H2510-10-00 |
— | ||
| replacement | |||||
|
07
|
07
3HL-H2510-00-00
Main Switch Assy
|
3HL-H2510-00-00 |
— | ||
|
08
|
08
98901-04010-00 Screw, Bind (33V) |
98901-04010-00 |
from US $1.28 |
||
| replacement | |||||
|
08
|
08
98980-04010-00 Screw, Bind |
98980-04010-00 |
from US $1.39 |
||
|
09
|
09
22J-81960-92-00 Rectifier/reg Assembly |
22J-81960-92-00 |
from US $140.92 |
||
|
10
|
10
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
10
|
10
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
10
|
10
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
11
|
11
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
12
|
12
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
13
|
13
3HL-H2128-00-00
Bracket, Battery
|
3HL-H2128-00-00 |
— | ||
|
14
|
14
3MR-82590-00-00
Wire Harness Assy
|
3MR-82590-00-00 |
— | ||
|
15
|
15
5T8-H3936-00-00
Band, Switch Cord
|
5T8-H3936-00-00 |
— | ||
|
16
|
16
5T8-H3936-10-00
Band, Switch Cord
|
5T8-H3936-10-00 |
— | ||
|
17
|
17
3HL-85720-01-00
Oil Level Gauge Assy
|
3HL-85720-01-00 |
— | ||
| replacement | |||||
|
17
|
17
3HL-85720-02-00
Oil Level Gauge Assy
|
3HL-85720-02-00 |
— | ||
|
18
|
18
97003-06012-00 Bolt,kt100S/j Recoil Starter |
97003-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
19
|
19
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
21
|
21
29G-83350-20-00 Flasher Relay Assy |
29G-83350-20-00 |
from US $47.25 |
||
|
22
|
22
35R-83371-20-00
Horn
|
35R-83371-20-00 |
— | ||
| replacement | |||||
|
22
|
22
3EC-83371-10-00
Horn
|
3EC-83371-10-00 |
— | ||
|
23
|
23
97003-06012-00 Bolt,kt100S/j Recoil Starter |
97003-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
23
|
23
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
23
|
23
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
24
|
24
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
25
|
25
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
26
|
26
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
26
|
26
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
27
|
27
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
28
|
28
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
29
|
29
2JN-82310-MO-00
Ignition Coil Assy
|
2JN-82310-MO-00 |
— | ||
|
30
|
30
98501-06020-00 Screw, Pan Head(3Bc) |
98501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
31
|
31
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
32
|
32
1J7-82370-00-00 Plug Cap Assembly |
1J7-82370-00-00 |
from US $45.18 |
||
|
33
|
33
3MP-85540-00-00
C.d.i. Unit Assy
|
3MP-85540-00-00 |
— | ||
|
34
|
34
3MP-H5546-00-00
Band
|
3MP-H5546-00-00 |
— | ||
|
35
|
35
4AD-82540-00-00
Neutral Switch Assy
|
4AD-82540-00-00 |
— | ||
|
36
|
36
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
36
|
36
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
37
|
37
1MK-H2530-VO-00
Stop Switch Assy
|
1MK-H2530-VO-00 |
— | ||
