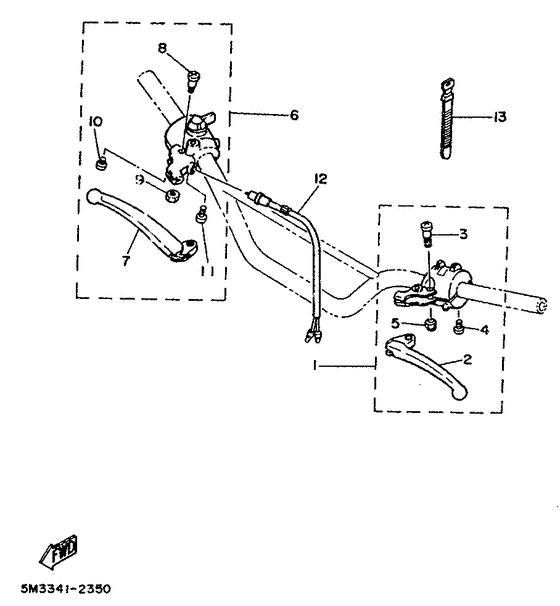

Handle switch & lever Diagram Yamaha DT50 DT50
- Year
- 1992
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4ET1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- DT50MX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5M3-82910-30-00
Lever Holder Assy (Left)
|
5M3-82910-30-00 |
— | ||
|
02
|
02
137-83912-02-38 Lever LClear (with buff) |
137-83912-02-38 |
from US $28.71 |
||
|
03
|
03
90149-05120-00 Screw, Spec''l Shape |
90149-05120-00 |
from US $2.69 |
||
|
04
|
04
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
04
|
04
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
05
|
05
95606-05100-00 Nut, U |
95606-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
05
|
05
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
06
|
06
5T8-82920-31-00
Lever Holder Assy (Right)
|
5T8-82920-31-00 |
— | ||
| replacement | |||||
|
06
|
06
5T8-82920-39-00
Lever Holder Assy (Right)
|
5T8-82920-39-00 |
— | ||
|
07
|
07
2N3-83922-00-00 Lever R |
2N3-83922-00-00 |
from US $23.09 |
||
|
08
|
08
90149-05120-00 Screw, Spec''l Shape |
90149-05120-00 |
from US $2.69 |
||
|
09
|
09
95606-05100-00 Nut, U |
95606-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
09
|
09
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
10
|
10
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
11
|
11
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
12
|
12
395-83980-00-00 Front Stop Switch As |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
12
|
12
395-83980-09-00 Front Stop Switch Assy |
395-83980-09-00 |
from US $28.79 |
||
|
13
|
13
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
