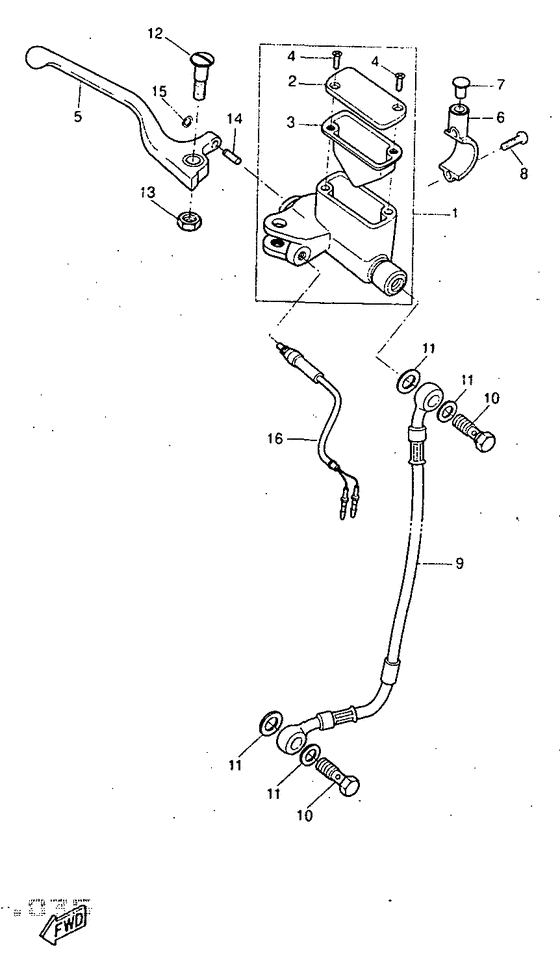

Front master cylinder Diagram Yamaha DT50 DT50
- Year
- 1997
- Colour
- Ink Blue (IKB; 00EX)
- Model code
- 5EC1
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BK-F5850-00-00
Master Cylinder Assy
|
5BK-F5850-00-00 |
— | ||
|
02
|
02
5BK-F5852-00-00
Cap, Reservoir
|
5BK-F5852-00-00 |
— | ||
|
03
|
03
5BK-F5854-00-00
Diaphragm, Reservoir
|
5BK-F5854-00-00 |
— | ||
|
04
|
04
5BK-F589H-00-00
Screw
|
5BK-F589H-00-00 |
— | ||
|
05
|
05
5BK-H3922-00-00
Lever 2
|
5BK-H3922-00-00 |
— | ||
|
06
|
06
5BK-F5867-00-00
Bracket, Master Cylinder
|
5BK-F5867-00-00 |
— | ||
|
07
|
07
5BK-F6133-00-00
Cap
|
5BK-F6133-00-00 |
— | ||
|
08
|
08
5BK-H3945-00-00
Bolt, Lever
|
5BK-H3945-00-00 |
— | ||
|
09
|
09
5BK-F5872-00-00
Hose, Brake 1
|
5BK-F5872-00-00 |
— | ||
| replacement | |||||
|
09
|
09
5BK-F5872-10-00
Hose, Brake 1
|
5BK-F5872-10-00 |
— | ||
|
10
|
10
NU6-25877-00-00
Bolt, Oil 1
|
NU6-25877-00-00 |
— | ||
| replacement | |||||
|
10
|
10
90401-10X01-00 Bolt, Union |
90401-10X01-00 |
US $7.22 |
||
|
11
|
11
NU6-25878-00-00 Washer, Oil Bolt |
NU6-25878-00-00 |
US $4.68 |
||
| replacement | |||||
|
11
|
11
90201-10X03-00 Washer, Plain |
90201-10X03-00 |
from US $4.68 |
||
|
12
|
12
5BK-H3925-00-00
Screw, Lever Fitting
|
5BK-H3925-00-00 |
— | ||
|
13
|
13
5BK-H3916-00-00
Nut, Lever Fitting
|
5BK-H3916-00-00 |
— | ||
|
14
|
14
4TD-F5924-00-00
Pin, Pad
|
4TD-F5924-00-00 |
— | ||
|
15
|
15
4TD-F5925-00-00
Clip
|
4TD-F5925-00-00 |
— | ||
|
16
|
16
5BK-H3980-00-00
Front Stop Switch Assy
|
5BK-H3980-00-00 |
— | ||
| replacement | |||||
|
16
|
16
5BK-H3980-01-00
Stop Front Switch
|
5BK-H3980-01-00 |
— | ||
|
17
|
17
5BK-F5870-00-00
Master Cylinder Sub Assy
No representado |
5BK-F5870-00-00 |
— | ||
