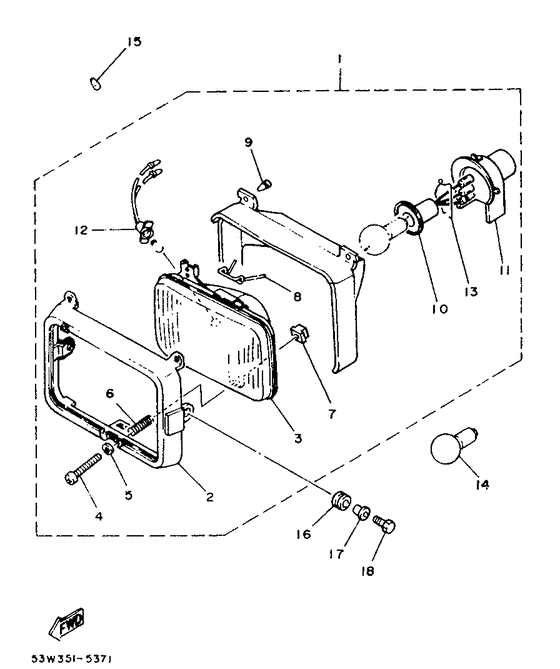

Headlight Diagram Yamaha DT80 DT80
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 2UW
- Sales region
- France (999)
- Базовая модель
- DT80LC
- Engine Capacity
- 80
- Model
- DT80LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
53W-84310-20-00
Headlight Unit Assy
|
53W-84310-20-00 |
— | ||
| replacement | |||||
|
01
|
01
53V-84310-45-00
Headlight Unit Assy
|
53V-84310-45-00 |
— | ||
|
02
|
02
47J-84115-00-00 Rim, Headlight |
47J-84115-00-00 |
from US $91.98 |
||
|
03
|
03
30W-84303-40-00
Headlight Unit Assy
|
30W-84303-40-00 |
— | ||
| replacement | |||||
|
03
|
03
53V-84310-45-00
Headlight Unit Assy
|
53V-84310-45-00 |
— | ||
|
04
|
04
43F-84131-00-00 Screw, Rim Adjuster |
43F-84131-00-00 |
from US $5.97 |
||
|
05
|
05
233-84127-00-00
Washer, Special
|
233-84127-00-00 |
— | ||
|
06
|
06
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
07
|
07
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
08
|
08
14T-84124-00-00 Set Spring (5G2-84324-A0) |
14T-84124-00-00 |
from US $7.08 |
||
|
09
|
09
10V-84198-00-00 Clip, Cover Fitting |
10V-84198-00-00 |
from US $7.85 |
||
|
10
|
10
308-84112-21-00
Socket
|
308-84112-21-00 |
— | ||
|
11
|
11
3Y3-84197-00-00
Cover, Socket
|
3Y3-84197-00-00 |
— | ||
| replacement | |||||
|
11
|
11
5T8-84397-00-00
Cover, Socket
|
5T8-84397-00-00 |
— | ||
|
12
|
12
34L-81346-00-00
Screw, pan head
|
34L-81346-00-00 |
— | ||
|
13
|
13
53V-84335-00-00
Spring
|
53V-84335-00-00 |
— | ||
|
16
|
16
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
17
|
17
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
17
|
17
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
18
|
18
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
