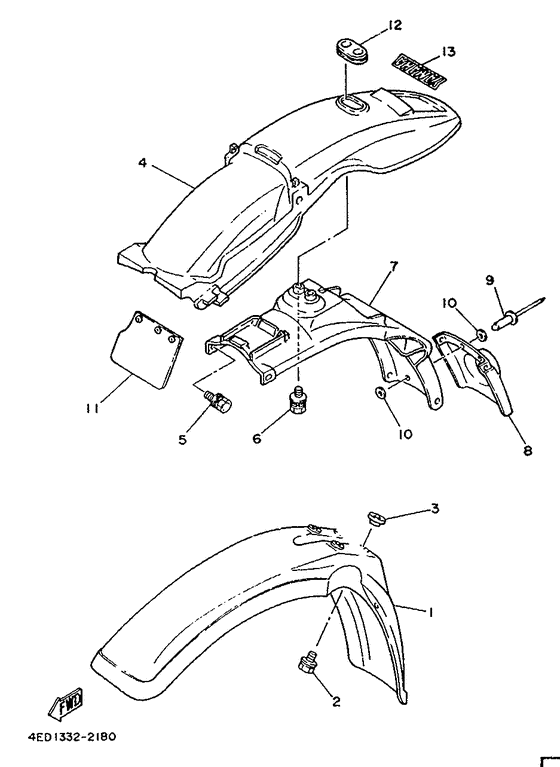

Fender Diagram Yamaha DT80 DT80
- Year
- 1992
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4ED1
- Sales region
- Germany (999)
- Базовая модель
- DT80LC
- Engine Capacity
- 80
- Model
- DT80LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
10V-21511-10-00
Fender, Front
Ur yamaha black |
10V-21511-10-00 |
— | ||
|
01
|
01
10V-21511-J0-00
Fender, Front
Ur purplish white solid 1 |
10V-21511-J0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur purplish white solid 1 |
999-99999-99-00 |
— | ||
|
02
|
02
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
03
|
03
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
03
|
03
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
04
|
04
4AN-F1611-00-00 Rear,fenderUr purplish white solid 1 |
4AN-F1611-00-00 |
US $110.11 |
||
|
04
|
04
4AN-F1611-10-00
Fender, Rear
Ur yamaha black |
4AN-F1611-10-00 |
— | ||
|
05
|
05
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
06
|
06
901-19060-97-00 Bolt, With Washer |
901-19060-97-00 |
from US $1.70 |
||
| replacements | |||||
|
06
|
06
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
06
|
06
90119-06172-00 Bolt, With Washer(2Wg) |
90119-06172-00 |
from US $1.70 |
||
|
07
|
07
34Y-21685-00-00
Bracket, License
|
34Y-21685-00-00 |
— | ||
| replacement | |||||
|
07
|
07
4ED-F1685-00-00
Bracket
|
4ED-F1685-00-00 |
— | ||
|
08
|
08
10V-21621-00-00
Flap
|
10V-21621-00-00 |
— | ||
|
09
|
09
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
10
|
10
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
10
|
10
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
11
|
11
34X-21691-00-00 FlapModell 1994 |
34X-21691-00-00 |
from US $17.57 |
||
|
11
|
11
4AN-F1691-00-00
Flap
|
4AN-F1691-00-00 |
— | ||
|
12
|
12
34X-21639-00-00
Damper 2
Modell 1994 |
34X-21639-00-00 |
— | ||
|
12
|
12
4AN-F1639-00-00
Damper 2
|
4AN-F1639-00-00 |
— | ||
|
13
|
13
4ED-F163G-00-00
Emblem 1
Ur fur pws 1 |
4ED-F163G-00-00 |
— | ||
|
13
|
13
4ED-F163G-10-00
Emblem 1
Ur fur yb |
4ED-F163G-10-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
Ur fur yb |
999-99999-99-00 |
— | ||
