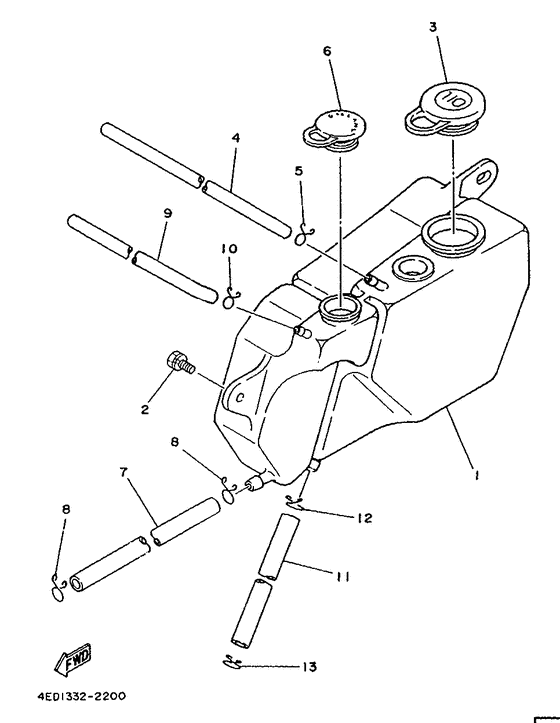

Oltank Diagram Yamaha DT80 DT80
- Year
- 1992
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4ED1
- Sales region
- Germany (999)
- Базовая модель
- DT80LC
- Engine Capacity
- 80
- Model
- DT80LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
24X-21751-00-00
Tank, Oil
Modell 1994 |
24X-21751-00-00 |
— | ||
|
01
|
01
4AN-F1751-00-00
Tank, Oil
|
4AN-F1751-00-00 |
— | ||
|
02
|
02
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
02
|
02
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
02
|
02
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
03
|
03
10V-21771-00-00 Body, CapModell 1994 |
10V-21771-00-00 |
from US $21.82 |
||
|
03
|
03
4AN-F1771-00-00
Body, Cap
|
4AN-F1771-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
34X-21745-00-00
Pipe, Oil Tank Breather
Modell 1994 |
34X-21745-00-00 |
— | ||
| replacement | |||||
|
04
|
04
2W9-24319-00-00
Pipe, Oil
Modell 1994 |
2W9-24319-00-00 |
— | ||
|
04
|
04
4AN-F1745-00-00
Pipe, Oil Tank Breather
|
4AN-F1745-00-00 |
— | ||
|
05
|
05
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
06
|
06
10V-21875-00-00 CapModell 1994 |
10V-21875-00-00 |
from US $6.40 |
||
|
06
|
06
4AN-F1875-00-00
Cap
|
4AN-F1875-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
14X-21877-00-00
Pipe, Overflow
Modell 1994 |
14X-21877-00-00 |
— | ||
|
07
|
07
4AN-F1877-00-00
Pipe, Overflow
|
4AN-F1877-00-00 |
— | ||
|
08
|
08
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
08
|
08
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
08
|
08
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
09
|
09
4AN-F1745-00-00
Pipe, Oil Tank Breather
34x-21745-00 |
4AN-F1745-00-00 |
— | ||
|
10
|
10
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
11
|
11
90445-09M25-00 Hose (L420) |
90445-09M25-00 |
from US $6.52 |
||
| replacements | |||||
|
11
|
11
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
11
|
11
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
12
|
12
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
