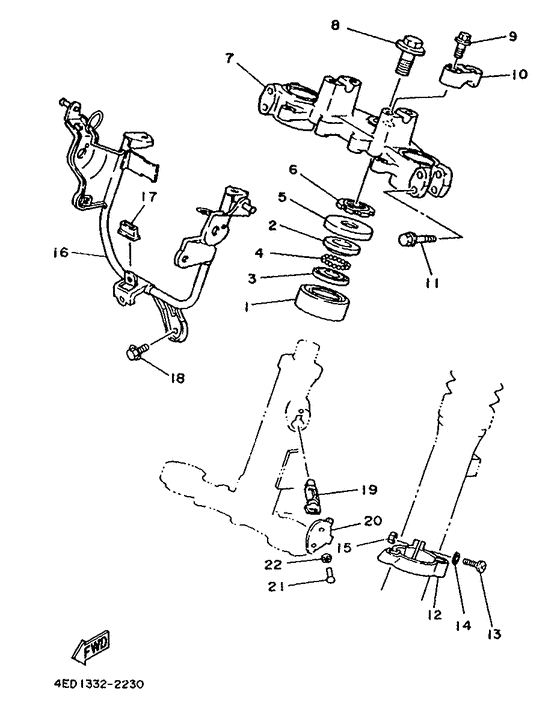

Steering Diagram Yamaha DT80 DT80
- Year
- 1992
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4ED1
- Sales region
- Germany (999)
- Базовая модель
- DT80LC
- Engine Capacity
- 80
- Model
- DT80LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
02
|
02
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
02
|
02
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
03
|
03
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
03
|
03
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
04
|
04
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
04
|
04
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
05
|
05
10V-23416-01-00 Cover Ball Race |
10V-23416-01-00 |
from US $14.88 |
||
|
06
|
06
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
06
|
06
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
06
|
06
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
07
|
07
4AN-F3435-00-35
Crown, Handle
34x-23435-00-35 |
4AN-F3435-00-35 |
— | ||
| replacement | |||||
|
07
|
07
4AN-F3435-00-00
Cown, Hand
34x-23435-00-35 |
4AN-F3435-00-00 |
— | ||
|
08
|
08
90105-14329-00 Bolt, Flange |
90105-14329-00 |
from US $9.92 |
||
|
09
|
09
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
10
|
10
1E6-23441-10-35 Holder, Handle UpperSilver |
1E6-23441-10-35 |
from US $17.85 |
||
|
11
|
11
95816-08040-00 Bolt, Flange |
95816-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
12
|
12
4AN-F3317-00-00 Holder, Cable34x-23317-00 |
4AN-F3317-00-00 |
US $4.57 |
||
| replacement | |||||
|
12
|
12
34X-23317-00-00 Holder, Cable34x-23317-00 |
34X-23317-00-00 |
from US $6.52 |
||
|
13
|
13
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
13
|
13
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
13
|
13
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
14
|
14
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
15
|
15
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
34X-23174-01-00
Stay, Headlight
|
34X-23174-01-00 |
— | ||
|
17
|
17
2TY-F3445-00-00
Damper
|
2TY-F3445-00-00 |
— | ||
| replacement | |||||
|
17
|
17
30X-23445-00-00 Damper |
30X-23445-00-00 |
from US $8.74 |
||
|
17
|
17
30X-23445-00-00 DamperModell 1994 |
30X-23445-00-00 |
from US $8.74 |
||
|
18
|
18
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
18
|
18
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
18
|
18
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
|
20
|
20
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
21
|
21
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
22
|
22
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
