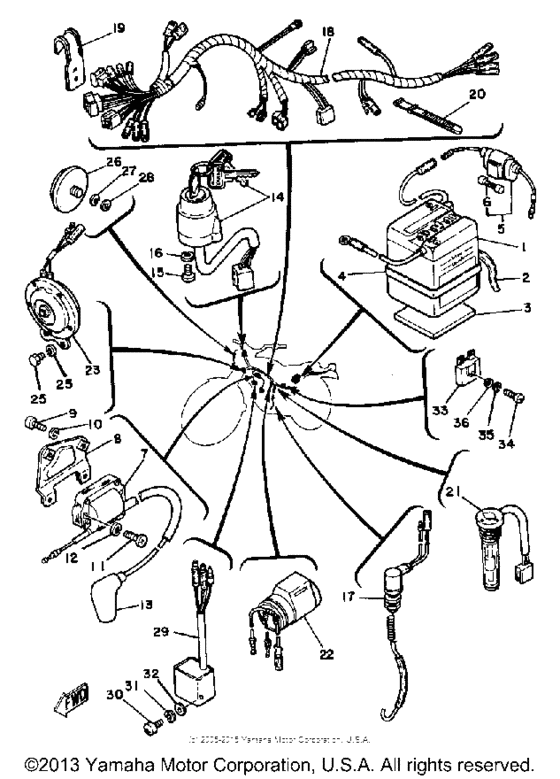

Electrical Diagram Yamaha DT80 DT80
- Year
- 1981
- Sales region
- USA
- Базовая модель
- DT80H
- Engine Capacity
- 80
- Model
- DT80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
1
|
1
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
2
|
2
90445-08172-00 Hose (L450) |
90445-08172-00 |
US $10.91 |
||
| replacement | |||||
|
2
|
2
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
3
|
3
583-24182-00-00 Damper, Locating 2 |
583-24182-00-00 |
from US $5.95 |
||
|
4
|
4
308-82124-00-00
Band, Battery
|
308-82124-00-00 |
— | ||
|
5
|
5
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
5
|
5
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
6
|
6
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
6
|
6
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
7
|
7
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
7
|
7
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
8
|
8
375-82316-01-00
Bracket, Ign Coil
|
375-82316-01-00 |
— | ||
|
9
|
9
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
14
|
14
1FE-82510-00-00 Main Switch Assy |
1FE-82510-00-00 |
from US $77.24 |
||
| replacements | |||||
|
14
|
14
53C-82510-00-00 MAIN SWITCH ASSY |
53C-82510-00-00 |
from US $63.95 |
||
|
14
|
14
53C-82510-01-00 Main Switch Assy |
53C-82510-01-00 |
US $70.74 |
||
|
15
|
15
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
353-82530-03-00
Stop Switch Assembly
|
353-82530-03-00 |
— | ||
|
18
|
18
3J8-82590-50-00
Wire Harness Assembly
|
3J8-82590-50-00 |
— | ||
|
19
|
19
2A3-82594-00-00
Clamp
|
2A3-82594-00-00 |
— | ||
|
20
|
20
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
21
|
21
2E7-84720-02-00
New Genuine Part
IN PRICE BOOK |
2E7-84720-02-00 |
— | ||
|
22
|
22
2F7-83350-60-00
Flasher Relay Assembly
|
2F7-83350-60-00 |
— | ||
|
23
|
23
2A7-83371-10-00
Horn
|
2A7-83371-10-00 |
— | ||
|
24
|
24
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
24
|
24
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
27
|
27
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
28
|
28
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
29
|
29
3A3-85540-20-00
Cdi Unit Assembly
|
3A3-85540-20-00 |
— | ||
|
30
|
30
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
30
|
30
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
32
|
32
90201-06600-00
Washer, Plate
|
90201-06600-00 |
— | ||
|
33
|
33
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
33
|
33
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
33
|
33
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
34
|
34
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
35
|
35
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
36
|
36
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
36
|
36
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
36
|
36
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
