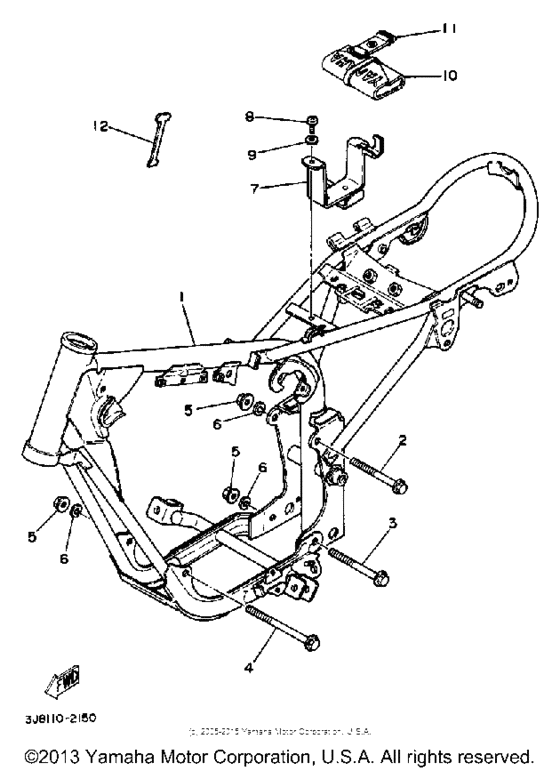

Frame - tool Diagram Yamaha DT80 DT80
- Year
- 1981
- Sales region
- USA
- Базовая модель
- DT80H
- Engine Capacity
- 80
- Model
- DT80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3J8-21110-00-33
Frame
|
3J8-21110-00-33 |
— | ||
|
1
|
1
3J8-21110-01-33
Frame
|
3J8-21110-01-33 |
— | ||
|
2
|
2
95811-08090-00 Bolt, Flange (2K7) |
95811-08090-00 |
from US $5.24 |
||
| replacement | |||||
|
2
|
2
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
3
|
3
95811-08095-00 Bolt, Flange |
95811-08095-00 |
from US $3.40 |
||
| replacement | |||||
|
3
|
3
95817-08095-00 Bolt, Flange(8Bt) |
95817-08095-00 |
from US $3.40 |
||
|
4
|
4
95811-08120-00 Bolt, Flange (22W) |
95811-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
5
|
5
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
5
|
5
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
7
|
7
368-21240-00-00
Box, Batt
|
368-21240-00-00 |
— | ||
|
8
|
8
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
2U2-W2810-00-00
Tool Kit
|
2U2-W2810-00-00 |
— | ||
|
11
|
11
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.72 |
||
|
12
|
12
353-15361-00-00
Gauge, Level
|
353-15361-00-00 |
— | ||
