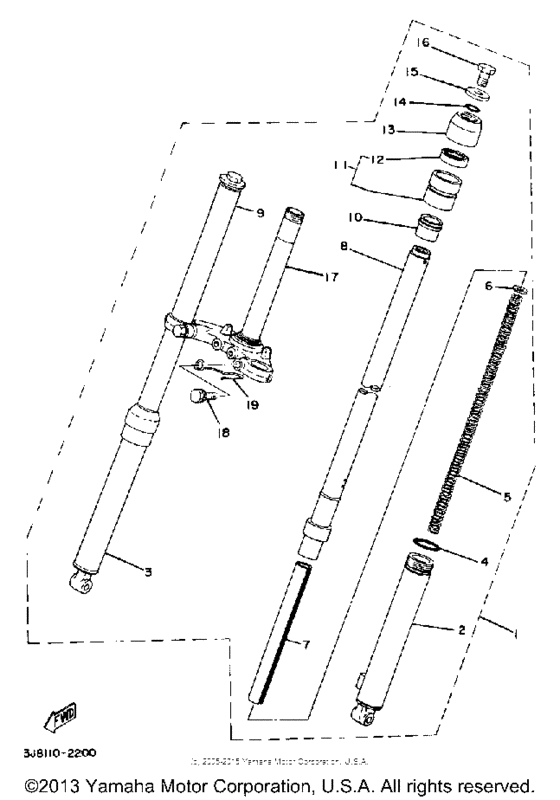

Front fork Diagram Yamaha DT80 DT80
- Year
- 1981
- Sales region
- USA
- Базовая модель
- DT80H
- Engine Capacity
- 80
- Model
- DT80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2F4-23101-60-35
Front Fork Assembly
|
2F4-23101-60-35 |
— | ||
|
2
|
2
374-23126-00-35
Tube, Outer 1
SILVER |
374-23126-00-35 |
— | ||
|
3
|
3
2F4-23136-60-35
Tube, Outer 2
SILVER |
2F4-23136-60-35 |
— | ||
|
4
|
4
207-23147-00-00 O-Ring |
207-23147-00-00 |
from US $13.28 |
||
|
5
|
5
367-23141-61-00
Spring, Front Fork
|
367-23141-61-00 |
— | ||
|
6
|
6
290-23149-00-00
Washer, Spring Upr
|
290-23149-00-00 |
— | ||
|
7
|
7
367-23166-61-00
Spacer, Oil Lock
|
367-23166-61-00 |
— | ||
|
8
|
8
439-23124-00-00
Tube, Inner 1
|
439-23124-00-00 |
— | ||
|
9
|
9
367-23134-61-00
Tube, Inner 2
|
367-23134-61-00 |
— | ||
|
10
|
10
109-23125-00-00 Metal, Slide 1 |
109-23125-00-00 |
US $21.29 |
||
|
11
|
11
290-23150-01-00
Outer Nut
|
290-23150-01-00 |
— | ||
|
12
|
12
109-23145-01-00 Oil Seal |
109-23145-01-00 |
from US $33.66 |
||
|
13
|
13
290-23144-00-00 Seal, Dust |
290-23144-00-00 |
from US $24.68 |
||
|
14
|
14
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
15
|
15
207-23112-00-00 Washer, Cap |
207-23112-00-00 |
from US $14.45 |
||
|
16
|
16
395-23111-00-00 Bolt, Cap |
395-23111-00-00 |
US $20.71 |
||
|
17
|
17
367-23340-60-33
Under Bracket
|
367-23340-60-33 |
— | ||
|
18
|
18
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
18
|
18
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
19
|
19
2A3-23319-00-00
Holder, Cable 2
|
2A3-23319-00-00 |
— | ||
