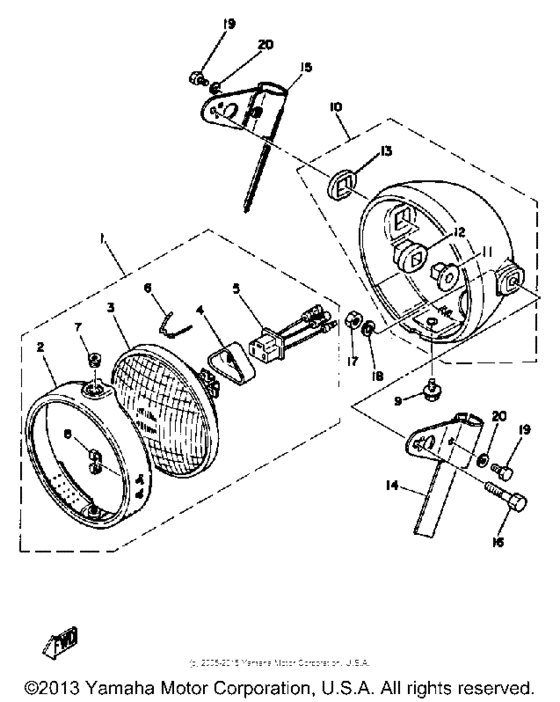

Headlight Diagram Yamaha DT80 DT80
- Year
- 1981
- Sales region
- USA
- Базовая модель
- DT80H
- Engine Capacity
- 80
- Model
- DT80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M1-84110-61-00
Headlight Unit Assembly
|
1M1-84110-61-00 |
— | ||
|
2
|
2
1M1-84195-61-00
Ring, Retaining
|
1M1-84195-61-00 |
— | ||
| replacement | |||||
|
2
|
2
3J0-84195-60-00 Ring, Retaining |
3J0-84195-60-00 |
from US $64.33 |
||
|
3
|
3
498-84120-61-00
Lens Assembly
|
498-84120-61-00 |
— | ||
|
4
|
4
341-84397-61-00
Cover, Socket
|
341-84397-61-00 |
— | ||
|
5
|
5
371-84312-60-00 Socket |
371-84312-60-00 |
from US $34.06 |
||
|
6
|
6
1M1-84124-60-00 Spring, Set |
1M1-84124-60-00 |
from US $6.38 |
||
|
7
|
7
1M1-84133-60-00 Collar, Screw |
1M1-84133-60-00 |
from US $7.23 |
||
|
8
|
8
498-84128-60-00
Spacer
|
498-84128-60-00 |
— | ||
|
9
|
9
1M1-84137-60-00 Bolt, Special |
1M1-84137-60-00 |
from US $9.09 |
||
|
10
|
10
1M1-84130-60-00
Body Assembly, Headlight (1M1-8
1M1-8 YAMAHA BLK |
1M1-84130-60-00 |
— | ||
|
11
|
11
498-84145-60-00 Collar, Body Fitting |
498-84145-60-00 |
from US $9.66 |
||
|
12
|
12
498-84163-60-00 Damper |
498-84163-60-00 |
from US $9.63 |
||
|
13
|
13
1M1-84164-60-00 Damper |
1M1-84164-60-00 |
from US $16.58 |
||
|
14
|
14
2F4-84118-00-00
Stay, Headlight 1
|
2F4-84118-00-00 |
— | ||
|
15
|
15
2F4-84119-00-00
Stay, Headlight 2
|
2F4-84119-00-00 |
— | ||
|
16
|
16
97303-08035-00 BoltBolt,hexagon |
97303-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
16
|
16
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
17
|
17
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
19
|
19
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
19
|
19
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
20
|
20
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
