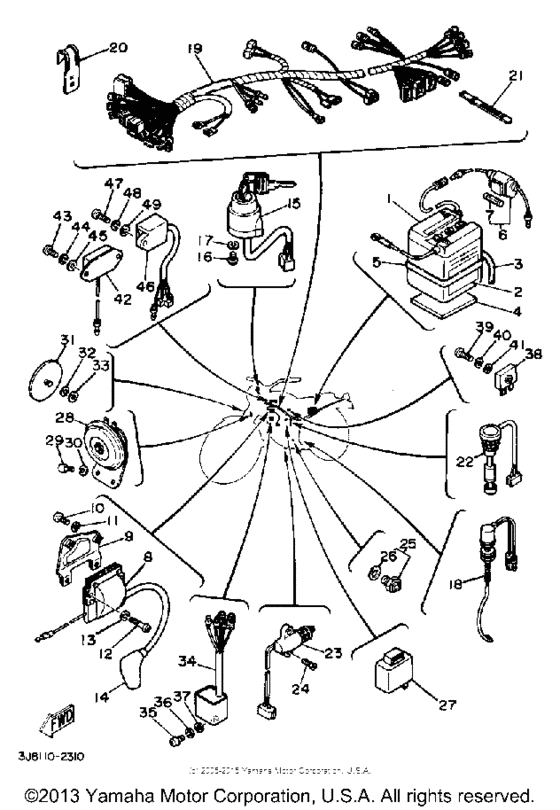

Electrical Diagram Yamaha DT80 DT80
- Year
- 1982
- Sales region
- USA
- Базовая модель
- DT80J
- Engine Capacity
- 80
- Model
- DT80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
1
|
1
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
2
|
2
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
2
|
2
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
90445-08172-00 Hose (L450) |
90445-08172-00 |
US $10.91 |
||
| replacement | |||||
|
3
|
3
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
4
|
4
583-24182-00-00 Damper, Locating 2 |
583-24182-00-00 |
from US $5.95 |
||
|
5
|
5
308-82124-00-00
Band, Battery
|
308-82124-00-00 |
— | ||
|
6
|
6
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
6
|
6
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
7
|
7
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
7
|
7
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
8
|
8
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
8
|
8
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
9
|
9
375-82316-01-00
Bracket, Ign Coil
|
375-82316-01-00 |
— | ||
|
10
|
10
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
12
|
12
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
15
|
15
1FE-82510-00-00 Main Switch Assy |
1FE-82510-00-00 |
from US $77.24 |
||
| replacements | |||||
|
15
|
15
53C-82510-00-00 MAIN SWITCH ASSY |
53C-82510-00-00 |
from US $63.95 |
||
|
15
|
15
53C-82510-01-00 Main Switch Assy |
53C-82510-01-00 |
US $70.74 |
||
|
16
|
16
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
353-82530-03-00
Stop Switch Assembly
|
353-82530-03-00 |
— | ||
|
19
|
19
3J8-82590-51-00
Wire Harness Assembly
|
3J8-82590-51-00 |
— | ||
|
20
|
20
2A3-82594-00-00
Clamp
|
2A3-82594-00-00 |
— | ||
|
21
|
21
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
22
|
22
2E7-85720-02-00
Oil Lvl Gauge Assembly
|
2E7-85720-02-00 |
— | ||
|
23
|
23
3J8-82566-01-00
Switch, Side Stand
|
3J8-82566-01-00 |
— | ||
|
24
|
24
987-06050-16-00
Screw, Flat Head
|
987-06050-16-00 |
— | ||
| replacement | |||||
|
24
|
24
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
25
|
25
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
25
|
25
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
25
|
25
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
26
|
26
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
26
|
26
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
27
|
27
2F7-83350-60-00
Flasher Relay Assembly
|
2F7-83350-60-00 |
— | ||
|
28
|
28
2A7-83371-10-00
Horn
|
2A7-83371-10-00 |
— | ||
|
29
|
29
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
29
|
29
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
32
|
32
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
33
|
33
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
34
|
34
3A3-85540-20-00
Cdi Unit Assembly
|
3A3-85540-20-00 |
— | ||
|
35
|
35
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
35
|
35
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
36
|
36
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
37
|
37
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
38
|
38
353-81970-63-00 Rectifier AssemblyUR |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
38
|
38
353-81970-M0-00 Rectifier AssyUR |
353-81970-M0-00 |
from US $40.62 |
||
|
38
|
38
353-81970-M1-00 Rectifier AssyUR |
353-81970-M1-00 |
US $17.99 |
||
|
39
|
39
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
40
|
40
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
41
|
41
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
41
|
41
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
41
|
41
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
42
|
42
443-81910-62-00
Voltage Reg Assembly (498-81910
498-81910 |
443-81910-62-00 |
— | ||
|
43
|
43
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
43
|
43
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
44
|
44
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
45
|
45
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
46
|
46
4Y3-85590-M0-00
Control Unit Assembly
|
4Y3-85590-M0-00 |
— | ||
|
46
|
46
3Y1-85590-M0-00
Control Unit Assembly
|
3Y1-85590-M0-00 |
— | ||
|
47
|
47
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
48
|
48
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
49
|
49
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
