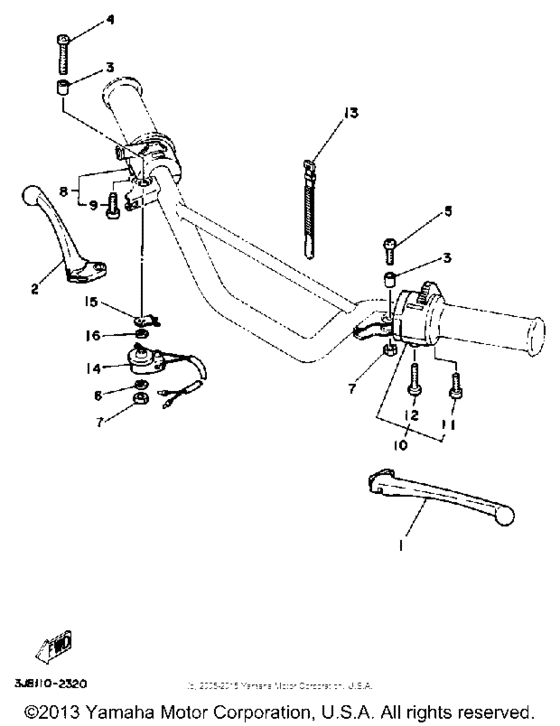

Handle switch & lever Diagram Yamaha DT80 DT80
- Year
- 1982
- Sales region
- USA
- Базовая модель
- DT80J
- Engine Capacity
- 80
- Model
- DT80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
137-83912-02-38 Lever L |
137-83912-02-38 |
from US $28.71 |
||
|
2
|
2
2N3-83922-00-00 Lever R |
2N3-83922-00-00 |
from US $23.09 |
||
|
3
|
3
90387-05383-00 Collar |
90387-05383-00 |
from US $2.69 |
||
|
4
|
4
901-57050-06-00 Screw,pan Head |
901-57050-06-00 |
US $1.73 |
||
| replacement | |||||
|
4
|
4
901-57050-55-00 Screw, Pan Head(8W1) |
901-57050-55-00 |
US $1.73 |
||
|
5
|
5
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
5
|
5
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
5
|
5
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
6
|
6
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
7
|
7
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
7
|
7
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
8
|
8
462-83976-01-00
Switch, Handle 1
|
462-83976-01-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
9
|
9
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
10
|
10
3J8-83973-00-00
Switch, Handle 3
|
3J8-83973-00-00 |
— | ||
|
11
|
11
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
11
|
11
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
11
|
11
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
12
|
12
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
12
|
12
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
12
|
12
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
13
|
13
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
14
|
14
232-83980-30-00 Stop Switch Assembly |
232-83980-30-00 |
from US $52.78 |
||
|
15
|
15
338-83983-00-00
Brkt, Frt Stop Swch
|
338-83983-00-00 |
— | ||
|
16
|
16
90201-05027-00 Washer, Plate |
90201-05027-00 |
from US $1.70 |
||
