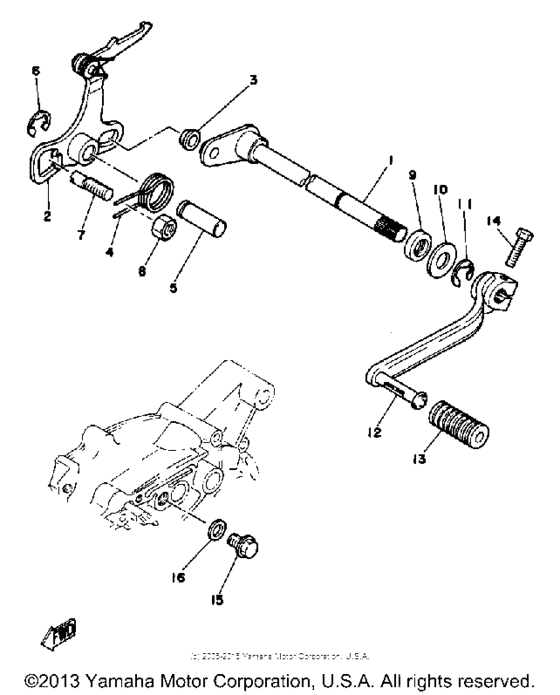

Shift shaft Diagram Yamaha DT80 DT80
- Year
- 1982
- Sales region
- USA
- Базовая модель
- DT80J
- Engine Capacity
- 80
- Model
- DT80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-18101-03-00
Shift Shaft Assembly
|
353-18101-03-00 |
— | ||
|
2
|
2
353-18120-00-00
Shift Lever Assembly
|
353-18120-00-00 |
— | ||
|
3
|
3
214-18178-00-00 Roller, Shift Lever |
214-18178-00-00 |
US $17.75 |
||
|
4
|
4
90508-32054-00 Spring, Torsion |
90508-32054-00 |
from US $3.85 |
||
|
5
|
5
367-18197-00-00
Shaft
|
367-18197-00-00 |
— | ||
|
6
|
6
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
7
|
7
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
8
|
8
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
8
|
8
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
9
|
9
931-01120-04-00
Oil Seal (Sd 12-22-5 Hs)
|
931-01120-04-00 |
— | ||
| replacements | |||||
|
9
|
9
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $5.41 |
||
|
9
|
9
93102-12106-00 Oil Seal (Sd 12-22-5 Hs) |
93102-12106-00 |
from US $3.72 |
||
|
10
|
10
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
11
|
11
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
12
|
12
367-18111-00-00 Pedal Shift |
367-18111-00-00 |
from US $39.93 |
||
|
13
|
13
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
14
|
14
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
15
|
15
90340-10003-00 Plug, Straight Scrw |
90340-10003-00 |
from US $3.12 |
||
|
16
|
16
90430-10031-00 Gasket |
90430-10031-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
