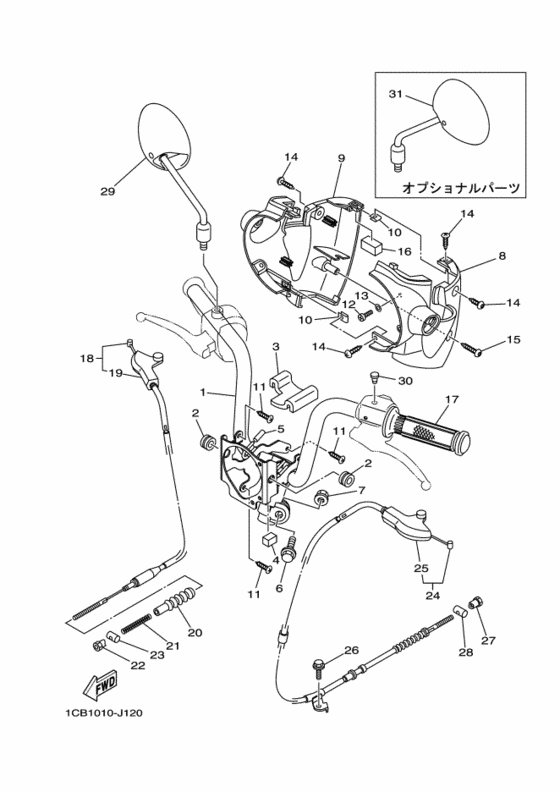

Steering handle & cable Diagram Yamaha ED06 EC-03
- Year
- 2010
- Colour
- White (WW; 0036)
- Model code
- 1CB1
- Sales region
- Japan (010)
- Engine Capacity
- 0
- Color Variant
- A
- Model
- ED06
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1CB-26110-00-00 Handle Comp |
1CB-26110-00-00 |
US $186.52 |
||
| replacement | |||||
|
1
|
1
1CB-26110-01-00 Handle Comp |
1CB-26110-01-00 |
US $186.52 |
||
|
2
|
2
90480-15397-00 Grommet |
90480-15397-00 |
from US $2.41 |
||
|
3
|
3
1CB-26113-00-00 Damper |
1CB-26113-00-00 |
US $2.27 |
||
|
4
|
4
2RH-21747-00-00 Damper |
2RH-21747-00-00 |
from US $2.61 |
||
|
5
|
5
90445-05005-00 Hose |
90445-05005-00 |
from US $0.38 |
||
|
6
|
6
90105-10036-00 Bolt, Flangeボルト，フランジ; |
90105-10036-00 |
from US $4.25 |
||
|
7
|
7
90185-10019-00 Nut, Self-Locking |
90185-10019-00 |
from US $1.70 |
||
|
8
|
8
5UY-26143-00-00 Cover, Handle Upper 1 |
5UY-26143-00-00 |
US $21.82 |
||
|
9
|
9
5UY-26145-00-00 Cover, Handle Upper 2 |
5UY-26145-00-00 |
US $21.82 |
||
|
10
|
10
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.36 |
||
|
11
|
11
97707-50014-00 Screw, Truss Head Tappingスクリユ，トラスヘツドタツピング; |
97707-50014-00 |
from US $1.42 |
||
|
12
|
12
985-07050-14-00 Screw, Pan Headスクリユ，パンヘツド; |
985-07050-14-00 |
from US $1.36 |
||
|
13
|
13
92907-05600-00 Washer, Plateワツシヤ，プレ−ト; |
92907-05600-00 |
from US $1.07 |
||
|
14
|
14
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.56 |
||
|
15
|
15
90160-05004-00 Screw, Round Tapping |
90160-05004-00 |
US $2.13 |
||
|
16
|
16
4WV-84345-00-00 Damper, Headlight |
4WV-84345-00-00 |
from US $1.42 |
||
|
17
|
17
3RY-26241-02-00 Grip (Left)グリツプ ; レフト |
3RY-26241-02-00 |
from US $10.87 |
||
|
18
|
18
5UY-26341-02-00 Wire, Brake 1 |
5UY-26341-02-00 |
US $32.30 |
||
|
19
|
19
3YJ-2637A-00-00 Cover, Handle Lever 2カバ−，ハンドルレバ− ２; |
3YJ-2637A-00-00 |
from US $7.54 |
||
|
20
|
20
3KJ-26342-00-00 Boot, Cable |
3KJ-26342-00-00 |
from US $4.88 |
||
|
21
|
21
90501-120A2-00 Spring, Compression |
90501-120A2-00 |
US $1.98 |
||
|
22
|
22
90179-06411-00 Nut |
90179-06411-00 |
from US $1.36 |
||
|
23
|
23
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
24
|
24
1CB-26351-00-00 Cable, Brake |
1CB-26351-00-00 |
US $60.79 |
||
|
25
|
25
3YJ-26372-00-00 Cover, Handle Lever 1カバ−，ハンドルレバ− １; |
3YJ-26372-00-00 |
from US $8.93 |
||
|
26
|
26
95802-06010-00 Bolt, Flange |
95802-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
26
|
26
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
26
|
26
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
27
|
27
90179-06411-00 Nut |
90179-06411-00 |
from US $1.36 |
||
|
28
|
28
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
29
|
29
3D2-26290-00-00 Rear View Mirror Assy (Right)ライト ライト |
3D2-26290-00-00 |
US $20.26 |
||
|
30
|
30
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
31
|
31
3D2-26280-00-00 Rear View Mirror Assy (Left)レフト レフト; ＡＰ |
3D2-26280-00-00 |
US $20.26 |
||
