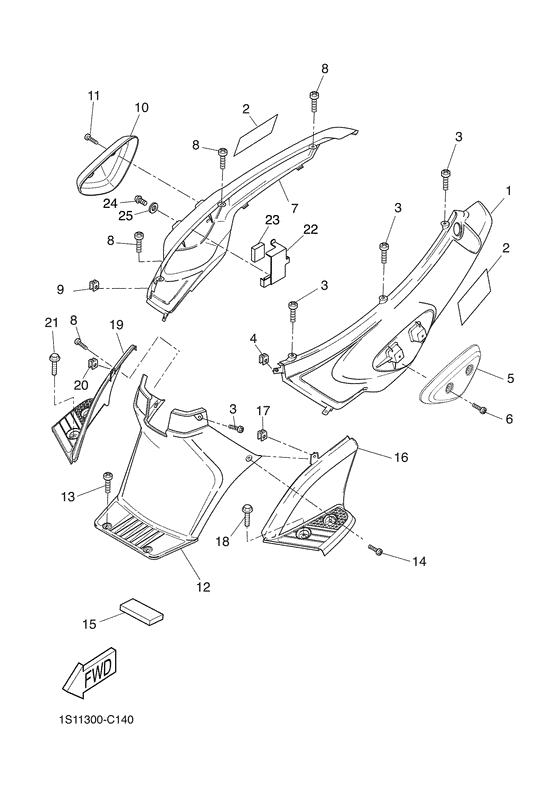

Side cover Diagram Yamaha EW50 Slider
- Year
- 2004
- Colour
- Light Reddish Yellow Me 1 (LRYM1; 0930)
- Model code
- 1S11
- Sales region
- Belgium (020)
- Engine Capacity
- 50
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5JH-F1731-00-PD
Cover, Side 3
For lrym1 |
5JH-F1731-00-PD |
— | ||
|
02
|
02
1S1-F173E-00-00
Graphic 1
|
1S1-F173E-00-00 |
— | ||
|
03
|
03
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
04
|
04
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
04
|
04
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
05
|
05
5JH-F1747-20-00
Damper
Dark grey |
5JH-F1747-20-00 |
— | ||
|
06
|
06
90169-05X01-00 Tapping Screw |
90169-05X01-00 |
from US $6.66 |
||
|
07
|
07
5JH-F1741-01-PD
Cover, Side 4
For lrym1 |
5JH-F1741-01-PD |
— | ||
|
08
|
08
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
09
|
09
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
09
|
09
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
10
|
10
5JH-F1747-20-00
Damper
Dark grey |
5JH-F1747-20-00 |
— | ||
|
11
|
11
90169-05X01-00 Tapping Screw |
90169-05X01-00 |
from US $6.66 |
||
|
12
|
12
5JH-F1711-20-00
Cover, Side 1
Dark grey |
5JH-F1711-20-00 |
— | ||
|
13
|
13
90167-05X02-00 Screw, TappingScrew, tapping |
90167-05X02-00 |
US $4.11 |
||
|
14
|
14
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
15
|
15
5BR-F174X-00-00 Damper |
5BR-F174X-00-00 |
US $20.69 |
||
|
16
|
16
5JH-F171E-20-00
Cover, Side 5
Dark grey |
5JH-F171E-20-00 |
— | ||
|
17
|
17
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
17
|
17
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
18
|
18
90105-06X03-00 Bolt, Washer Based |
90105-06X03-00 |
US $9.92 |
||
|
19
|
19
5JH-F171X-20-00
Cover, Side 6
Dark grey |
5JH-F171X-20-00 |
— | ||
|
20
|
20
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
20
|
20
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
21
|
21
90105-06X03-00 Bolt, Washer Based |
90105-06X03-00 |
US $9.92 |
||
|
22
|
22
5WK-F172K-00-00
Bracket 1
|
5WK-F172K-00-00 |
— | ||
|
23
|
23
4SB-F174X-10-00
Damper
|
4SB-F174X-10-00 |
— | ||
|
24
|
24
90111-06X00-00
Bolt,hex. Socket Button
|
90111-06X00-00 |
— | ||
|
25
|
25
90201-06X11-00
Washer, Plate
|
90201-06X11-00 |
— | ||
