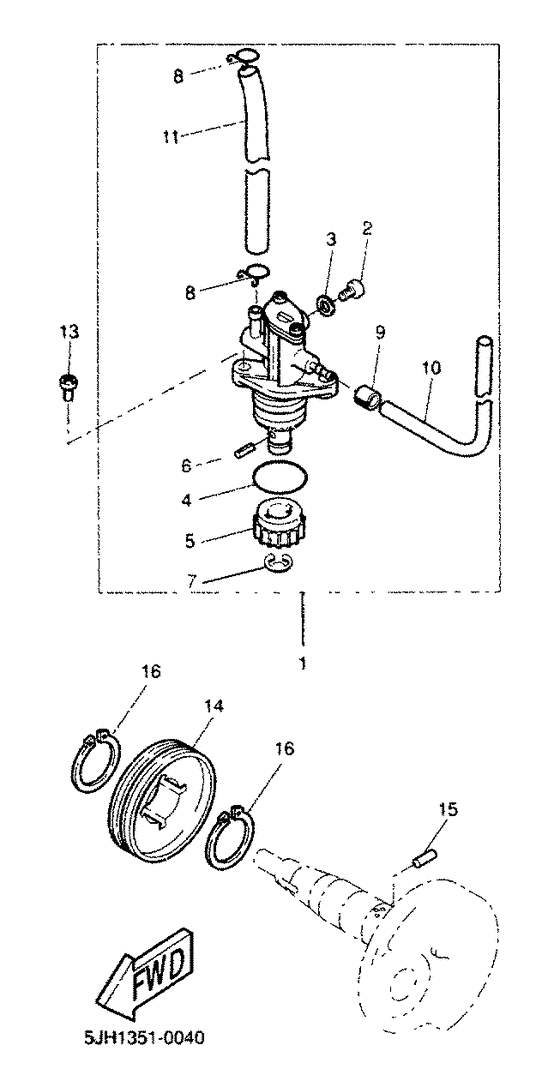

Oil pump (MARIN GEAR) Diagram Yamaha EW50 Slider
- Year
- 2000
- Colour
- Mat Black 2 (MBL2; 0582)
- Model code
- 5JH1
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AA-13100-02-00 Oil Pump Assy |
3AA-13100-02-00 |
from US $123.73 |
||
| replacements | |||||
|
01
|
01
3AA-13100-06-00 Oil Pump Assy |
3AA-13100-06-00 |
US $124.21 |
||
|
01
|
01
5RH-E3100-00-00
Oil Pump Assy
|
5RH-E3100-00-00 |
— | ||
|
02
|
02
3WF-13185-00-00 Bolt, Breather |
3WF-13185-00-00 |
from US $3.40 |
||
|
04
|
04
1YU-13473-00-00 O-Ring |
1YU-13473-00-00 |
from US $7.37 |
||
|
05
|
05
3AA-13124-00-00 Gear Worm Wheel (40T) |
3AA-13124-00-00 |
from US $10.22 |
||
|
06
|
06
1YU-13516-00-00 Pin, Dowel |
1YU-13516-00-00 |
from US $1.98 |
||
|
07
|
07
1YU-13577-00-00 Clip |
1YU-13577-00-00 |
from US $2.55 |
||
|
08
|
08
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
09
|
09
90468-02X00-00 Clip |
90468-02X00-00 |
US $1.70 |
||
| replacement | |||||
|
09
|
09
904-6802X-01-00 Clip |
904-6802X-01-00 |
from US $1.70 |
||
|
10
|
10
1YU-13418-00-00 Pipe, Oil 2 |
1YU-13418-00-00 |
from US $11.62 |
||
|
11
|
11
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.38 |
||
|
13
|
13
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.36 |
||
|
14
|
14
3VL-E3178-00-00 Gear, Pump Drive |
3VL-E3178-00-00 |
US $47.53 |
||
|
15
|
15
93603-12007-00 Pin, Dowel |
93603-12007-00 |
from US $1.84 |
||
|
16
|
16
99009-19400-00 Circlip |
99009-19400-00 |
from US $1.56 |
||
