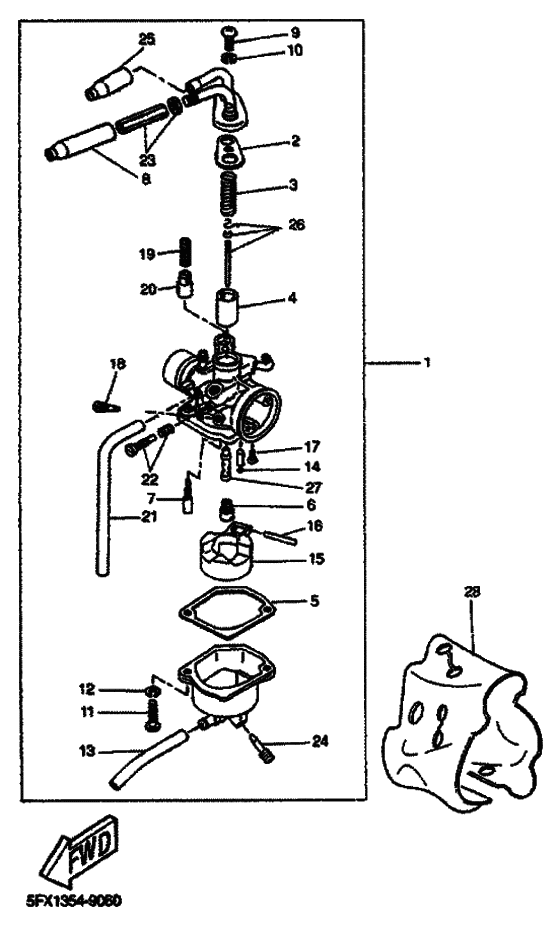

Carburetor Diagram Yamaha EW50 Slider
- Year
- 2001
- Colour
- Mat Black 2 (MBL2; 0582)
- Model code
- 5JH3
- Sales region
- Europe (050)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FX-14301-00-00
Carburetor Assy 1
|
5FX-14301-00-00 |
— | ||
|
2
|
2
1YU-14126-00-00 Gasket |
1YU-14126-00-00 |
from US $7.23 |
||
|
3
|
3
1YU-14331-00-00 Spring, Throttle Valve |
1YU-14331-00-00 |
from US $3.59 |
||
|
4
|
4
3KJ-14312-30-00
Valve, Throttle 1
|
3KJ-14312-30-00 |
— | ||
|
5
|
5
1YU-14384-00-00 Gasket, Float Chamber |
1YU-14384-00-00 |
from US $11.16 |
||
|
6
|
6
14T-14343-44-00 Jet, Main (# 88) |
14T-14343-44-00 |
US $16.89 |
||
|
7
|
7
1YU-14353-25-00 Pilot Jet (50)Jet, pilot ( 50) |
1YU-14353-25-00 |
US $6.50 |
||
|
8
|
8
1UV-14169-00-00 Cap |
1UV-14169-00-00 |
from US $13.70 |
||
|
9
|
9
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
3AA-14349-00-00 Pipe |
3AA-14349-00-00 |
from US $4.64 |
||
|
14
|
14
2JA-14392-00-00 Valve, Needle |
2JA-14392-00-00 |
from US $23.66 |
||
|
15
|
15
1YU-14385-00-00 Float |
1YU-14385-00-00 |
from US $75.85 |
||
|
16
|
16
14T-14386-00-00 Pin, Float |
14T-14386-00-00 |
from US $7.79 |
||
|
17
|
17
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.13 |
||
|
18
|
18
14T-14104-00-00 Screw, Air Adjusting |
14T-14104-00-00 |
from US $12.82 |
||
|
19
|
19
1YU-14335-00-00 Spring, Plunger |
1YU-14335-00-00 |
from US $3.68 |
||
|
20
|
20
1YU-14371-00-00 Plunger, Starter |
1YU-14371-00-00 |
from US $17 |
||
|
21
|
21
1YU-14197-01-00 Pipe |
1YU-14197-01-00 |
US $8.36 |
||
|
22
|
22
1YU-14103-00-00 Throttle Screw Set |
1YU-14103-00-00 |
from US $23.66 |
||
|
23
|
23
1UV-14106-00-00 Cable Adjust Screw Set |
1UV-14106-00-00 |
US $40.34 |
||
|
24
|
24
14T-14104-00-00 Screw, Air Adjusting |
14T-14104-00-00 |
from US $12.82 |
||
|
25
|
25
14T-14169-00-00 Cap |
14T-14169-00-00 |
from US $10.01 |
||
|
26
|
26
3AA-1490J-00-00 Needle Set |
3AA-1490J-00-00 |
from US $14.99 |
||
|
27
|
27
2XX-14341-00-00 Nozzle, Main |
2XX-14341-00-00 |
US $26.42 |
||
|
28
|
28
1YU-14283-01-00 Cover, Carburetor 1 |
1YU-14283-01-00 |
from US $17 |
