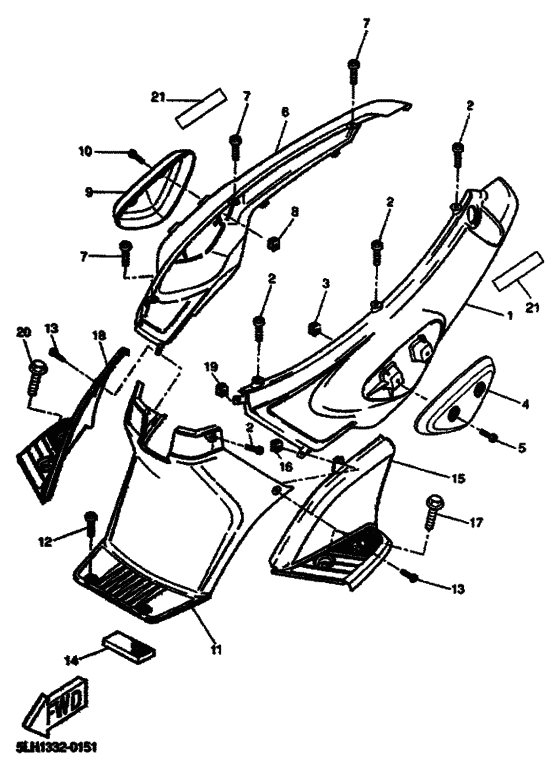

Side cover Diagram Yamaha EW50 Slider
- Year
- 2001
- Colour
- Mat Black 2 (MBL2; 0582)
- Model code
- 5JH3
- Sales region
- Europe (050)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JH-F1731-00-P0
Cover, Side 3
(UR MBL2 FORMBL2) |
5JH-F1731-00-P0 |
— | ||
|
1
|
1
5JH-F1731-00-P2
Cover, Side 3
(UR LNME FORLNME) |
5JH-F1731-00-P2 |
— | ||
|
1
|
1
5JH-F1731-00-P4
Cover, Side 3
(UR DPBMC FOR DPB) |
5JH-F1731-00-P4 |
— | ||
|
2
|
2
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
3
|
3
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
3
|
3
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
4
|
4
5JH-F1747-00-00 Damper(UR FOR MBL2/DPBM) |
5JH-F1747-00-00 |
US $16.15 |
||
|
4
|
4
5JH-F1747-10-00
Damper
(UR FOR LNME) |
5JH-F1747-10-00 |
— | ||
|
5
|
5
90169-05X01-00 Tapping Screw |
90169-05X01-00 |
from US $6.66 |
||
|
6
|
6
5JH-F1741-00-P0
Cover, Side 4
(UR MBL2 FORMBL2) |
5JH-F1741-00-P0 |
— | ||
| replacement | |||||
|
6
|
6
5JH-F1741-01-P0
Cover Side 4
(UR MBL2 FORMBL2) |
5JH-F1741-01-P0 |
— | ||
|
6
|
6
5JH-F1741-00-P2
Cover, Side 4
(UR LNME FORLNME) |
5JH-F1741-00-P2 |
— | ||
| replacement | |||||
|
6
|
6
5JH-F1741-01-P2
Cover Side 4
(UR LNME FORLNME) |
5JH-F1741-01-P2 |
— | ||
|
6
|
6
5JH-F1741-00-P4
Cover, Side 4
(UR DPBMC FOR DPB) |
5JH-F1741-00-P4 |
— | ||
| replacement | |||||
|
6
|
6
5JH-F1741-01-P4
Cover, Side 4
(UR DPBMC FOR DPB) |
5JH-F1741-01-P4 |
— | ||
|
7
|
7
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
8
|
8
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
8
|
8
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
9
|
9
5JH-F1747-00-00 Damper(UR FOR MBL2/DPBM) |
5JH-F1747-00-00 |
US $16.15 |
||
|
9
|
9
5JH-F1747-10-00
Damper
(UR FOR LNME) |
5JH-F1747-10-00 |
— | ||
|
10
|
10
90169-05X01-00 Tapping Screw |
90169-05X01-00 |
from US $6.66 |
||
|
11
|
11
5JH-F1711-00-00 Cover, Side 1(UR FOR MBL2/DPBM) |
5JH-F1711-00-00 |
US $53.05 |
||
|
11
|
11
5JH-F1711-10-00
Cover, Side 1
(UR FOR LNME) |
5JH-F1711-10-00 |
— | ||
|
12
|
12
90167-05X02-00 Screw, TappingScrew, tapping |
90167-05X02-00 |
US $4.11 |
||
|
13
|
13
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
14
|
14
5BR-F174X-00-00 Damper |
5BR-F174X-00-00 |
US $20.69 |
||
|
15
|
15
5JH-F171E-00-00 Cover, Side 5(UR FOR MBL2/DPBM) |
5JH-F171E-00-00 |
US $26.49 |
||
|
15
|
15
5JH-F171E-10-00
Cover, Side 5
(UR FOR LNME) |
5JH-F171E-10-00 |
— | ||
|
16
|
16
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
16
|
16
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
17
|
17
90105-06X03-00 Bolt, Washer Based |
90105-06X03-00 |
US $9.92 |
||
|
18
|
18
5JH-F171X-00-00 Cover, Side 6(UR FOR MBL2/DPBM) |
5JH-F171X-00-00 |
US $27.49 |
||
|
18
|
18
5JH-F171X-10-00
Cover, Side 6
(UR FOR LNME) |
5JH-F171X-10-00 |
— | ||
|
19
|
19
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
19
|
19
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
20
|
20
90105-06X03-00 Bolt, Washer Based |
90105-06X03-00 |
US $9.92 |
||
|
21
|
21
4RC-F1737-00-00
Emblem
|
4RC-F1737-00-00 |
— | ||
