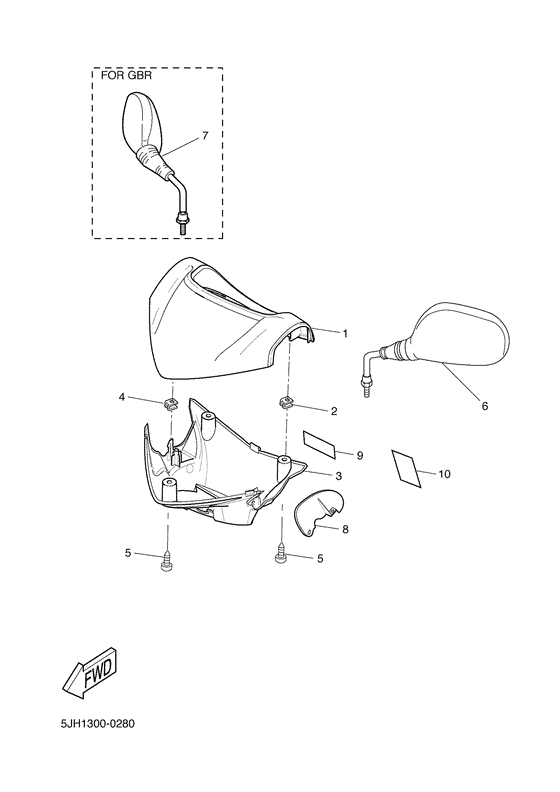

Cowling 1 Diagram Yamaha EW50 Slider
- Year
- 2002
- Colour
- Vivid Yellowish Red Metallic 2 (VYRM2; 0766)
- Model code
- 5JH5
- Sales region
- England (030)
- Engine Capacity
- 50
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5JH-F6213-00-00
Cover, Upper
|
5JH-F6213-00-00 |
— | ||
|
02
|
02
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
02
|
02
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
03
|
03
5JH-F6144-00-00
Cover, Handlebar Lower 1
For mbl2/dpbmc |
5JH-F6144-00-00 |
— | ||
|
04
|
04
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
04
|
04
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
05
|
05
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
06
|
06
4SB-F6280-00-00 Mirror (Left)Rear view mirror assy (left) Ur for fr/esp/bel/prt |
4SB-F6280-00-00 |
from US $31.74 |
||
|
07
|
07
4EF-F6290-00-00
Rear View Mirror Assy (Right)
Ur for gbr |
4EF-F6290-00-00 |
— | ||
|
08
|
08
5JH-F6158-00-00
Plate, Side 1
|
5JH-F6158-00-00 |
— | ||
|
09
|
09
4CU-F1568-00-00
Label, Warning
Ur for gbr/dnk |
4CU-F1568-00-00 |
— | ||
|
09
|
09
4CU-F1568-10-00 Label, WarningUr for fr |
4CU-F1568-10-00 |
US $25.72 |
||
| replacements | |||||
|
09
|
09
5WW-F1568-01-00 Label, WarningUr for fr |
5WW-F1568-01-00 |
from US $14.73 |
||
|
09
|
09
5WW-F1568-00-00 Label, WarningUr for fr |
5WW-F1568-00-00 |
from US $14.73 |
||
|
09
|
09
4CU-F1568-30-00
Label, Warning
Ur for spa |
4CU-F1568-30-00 |
— | ||
|
10
|
10
5JH-F118K-01-00
Label, Caution
Ur for spa |
5JH-F118K-01-00 |
— | ||
