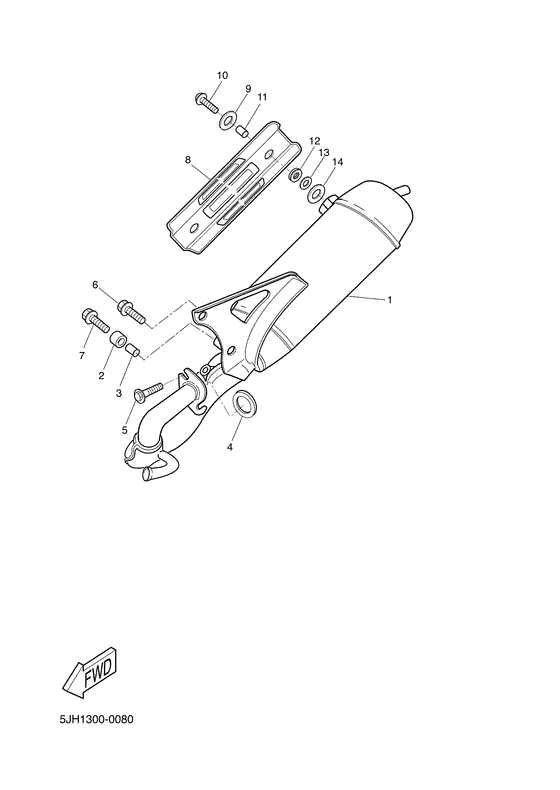

Exhaust Diagram Yamaha EW50 Slider
- Year
- 2002
- Colour
- Vivid Yellowish Red Metallic 2 (VYRM2; 0766)
- Model code
- 5JH5
- Sales region
- England (030)
- Engine Capacity
- 50
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5JH-E4610-00-00
Exhaust Pipe Assy 1
|
5JH-E4610-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5JH-E4610-01-00
Ext.pipe Assy Yamaha Blac
|
5JH-E4610-01-00 |
— | ||
|
02
|
02
4MJ-E4445-00-00 Grommet |
4MJ-E4445-00-00 |
from US $2.83 |
||
|
03
|
03
5EU-E4779-00-00 Collar |
5EU-E4779-00-00 |
from US $4.39 |
||
|
04
|
04
5AD-E4613-00-00 Gasket, Exhaust Pi |
5AD-E4613-00-00 |
US $8.36 |
||
|
05
|
05
90153-06061-00 Screw, Hexagon |
90153-06061-00 |
from US $1.84 |
||
|
06
|
06
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
07
|
07
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
08
|
08
5JH-E4729-00-00
Emblem, Protector
|
5JH-E4729-00-00 |
— | ||
| replacement | |||||
|
08
|
08
5JH-E4729-01-00
Emblem, Protector
|
5JH-E4729-01-00 |
— | ||
|
09
|
09
3WG-E4766-10-00
Washer, Protector
|
3WG-E4766-10-00 |
— | ||
|
10
|
10
90154-06808-00 Screw, Binding |
90154-06808-00 |
US $5.29 |
||
| replacement | |||||
|
10
|
10
90154-06061-00 Screw, Binding |
90154-06061-00 |
from US $3.26 |
||
|
11
|
11
90387-06X08-00
Collar
|
90387-06X08-00 |
— | ||
|
12
|
12
90480-11X00-00
Grommet
|
90480-11X00-00 |
— | ||
|
13
|
13
90201-06X00-00 Washer, PlateWasher, plate |
90201-06X00-00 |
from US $4.11 |
||
|
14
|
14
3WG-E4766-00-00
Washer, Protector
|
3WG-E4766-00-00 |
— | ||
