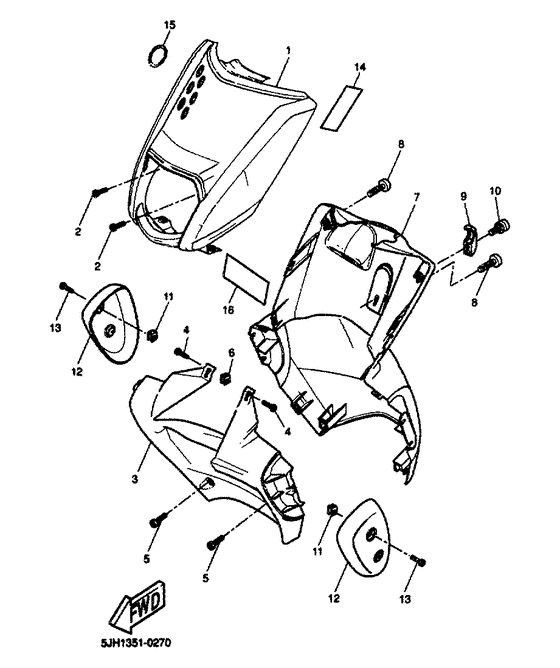

Leg shield Diagram Yamaha EW50 Slider
- Year
- 2000
- Colour
- Mat Black 2 (MBL2; 0582)
- Model code
- 5LH1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5JH-F835G-00-26
Body, Front Upper 1
(ur cpy) |
5JH-F835G-00-26 |
— | ||
| replacements | |||||
|
01
|
01
5JH-F835G-01-26
Body,front upper 1(c.yell
(ur cpy) |
5JH-F835G-01-26 |
— | ||
|
01
|
01
5JH-F835G-02-26
Body Front Upper 1 Cpy
(ur cpy) |
5JH-F835G-02-26 |
— | ||
|
01
|
01
5JH-F835G-00-P0
Body, Front Upper 1
(ur mbl2) |
5JH-F835G-00-P0 |
— | ||
| replacement | |||||
|
01
|
01
5JH-F835G-02-P0
Body Front Upper 1 Mmbl
(ur mbl2) |
5JH-F835G-02-P0 |
— | ||
|
01
|
01
5JH-F836G-00-P2
Bracket 4
(ur lnme) |
5JH-F836G-00-P2 |
— | ||
|
02
|
02
90187-05X02-00
Screw m5-12
|
90187-05X02-00 |
— | ||
|
03
|
03
5JH-F835J-00-26
Body, Front Lower 1
(ur cpy) |
5JH-F835J-00-26 |
— | ||
|
03
|
03
5JH-F835J-00-P0
Body, Front Lower 1
(ur mbl2) |
5JH-F835J-00-P0 |
— | ||
|
03
|
03
5JH-F835J-00-P2
Body, Front Lower 1
(ur lnme) |
5JH-F835J-00-P2 |
— | ||
|
04
|
04
90167-05X02-00 Screw, TappingScrew, tapping |
90167-05X02-00 |
US $4.11 |
||
|
05
|
05
90167-06X01-00
Screw, tapping
|
90167-06X01-00 |
— | ||
|
06
|
06
90183-06X00-00 Nut, Spring |
90183-06X00-00 |
from US $7.08 |
||
|
07
|
07
5JH-F8311-00-26
Leg Shield 1
(ur cpy) |
5JH-F8311-00-26 |
— | ||
| replacement | |||||
|
07
|
07
5JH-F8311-02-26
Leg Shield Cpy
(ur cpy) |
5JH-F8311-02-26 |
— | ||
|
07
|
07
5JH-F8311-00-P0
Leg Shield 1
(ur mbl2) |
5JH-F8311-00-P0 |
— | ||
| replacement | |||||
|
07
|
07
5JH-F8311-02-P0
Shield Leg 1 Mmbl
(ur mbl2) |
5JH-F8311-02-P0 |
— | ||
|
07
|
07
5JH-F8311-00-P2
Leg Shield 1
(ur lnme) |
5JH-F8311-00-P2 |
— | ||
| replacement | |||||
|
07
|
07
5JH-F8311-02-P2
Leg Shield Lnme
(ur lnme) |
5JH-F8311-02-P2 |
— | ||
|
08
|
08
90187-05X02-00
Screw m5-12
|
90187-05X02-00 |
— | ||
|
09
|
09
4SB-F1396-00-00
Stay, coupler
|
4SB-F1396-00-00 |
— | ||
|
10
|
10
90154-06X02-00 Screw, Binding |
90154-06X02-00 |
US $11.19 |
||
|
11
|
11
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
11
|
11
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
12
|
12
5JH-F8371-00-00 Damper(ur for bl2/cpy) |
5JH-F8371-00-00 |
US $16.15 |
||
|
12
|
12
5JH-F8371-10-00
Damper
(ur for lnme) |
5JH-F8371-10-00 |
— | ||
|
13
|
13
90189-05X01-00
Screw, tapping
|
90189-05X01-00 |
— | ||
|
14
|
14
5JH-F1788-00-00
Graphic
(ur mbl2) |
5JH-F1788-00-00 |
— | ||
|
14
|
14
5JH-F1788-10-00
Graphic
(ur lnme) |
5JH-F1788-10-00 |
— | ||
|
14
|
14
5JH-F1788-20-00
Graphic
(ur cpy) |
5JH-F1788-20-00 |
— | ||
|
15
|
15
X01-F153A-00-00 Emblem 2 |
X01-F153A-00-00 |
US $9.43 |
||
|
16
|
16
5JH-F832P-10-00
Graphic 18
(ur lnme) |
5JH-F832P-10-00 |
— | ||
|
16
|
16
5JH-F832P-20-00
Graphic 18
(ur cpy) |
5JH-F832P-20-00 |
— | ||
|
16
|
16
5JH-F832P-00-00
Graphic 18
(ur mbl2) |
5JH-F832P-00-00 |
— | ||
