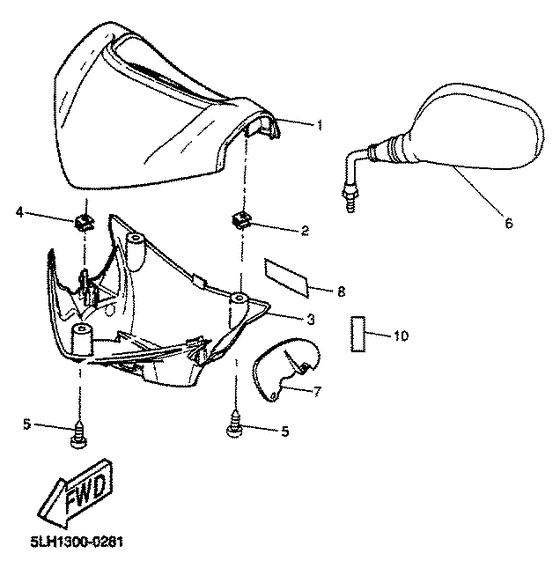

Cowling 1 Diagram Yamaha EW50 Slider
- Year
- 2001
- Model code
- 5LH3
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5JH-F6213-00-00
Cover, Upper
(ur for mbl2/dpbmc) |
5JH-F6213-00-00 |
— | ||
|
01
|
01
5JH-F6213-10-00
Cover, Upper
(ur for lnme) |
5JH-F6213-10-00 |
— | ||
|
02
|
02
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
02
|
02
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
03
|
03
5JH-F6144-00-00
Cover, Handlebar Lower 1
(ur for mbl2/dpbmc) |
5JH-F6144-00-00 |
— | ||
|
03
|
03
5JH-F6144-10-00
Cover, Handlebar Lower 1
(ur for lnme) |
5JH-F6144-10-00 |
— | ||
|
04
|
04
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
04
|
04
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
05
|
05
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
06
|
06
4SB-F6280-00-00 Mirror (Left)Rear view mirror assy (left) |
4SB-F6280-00-00 |
from US $31.74 |
||
|
07
|
07
5JH-F6158-00-00
Plate, Side 1
|
5JH-F6158-00-00 |
— | ||
|
08
|
08
4CU-F1568-10-00 Label, Warning(ur for ch) |
4CU-F1568-10-00 |
US $25.72 |
||
| replacements | |||||
|
08
|
08
5WW-F1568-01-00 Label, Warning(ur for ch) |
5WW-F1568-01-00 |
from US $14.73 |
||
|
08
|
08
5WW-F1568-00-00 Label, Warning(ur for ch) |
5WW-F1568-00-00 |
from US $14.73 |
||
|
08
|
08
4CU-F1568-20-00
Label, Warning
(ur for d) |
4CU-F1568-20-00 |
— | ||
|
08
|
08
4CU-F1568-40-00 Label, Warning(ur for i/ch) |
4CU-F1568-40-00 |
US $14.73 |
||
|
08
|
08
4CU-F1568-50-00
Label, Warning
(ur for nl) |
4CU-F1568-50-00 |
— | ||
