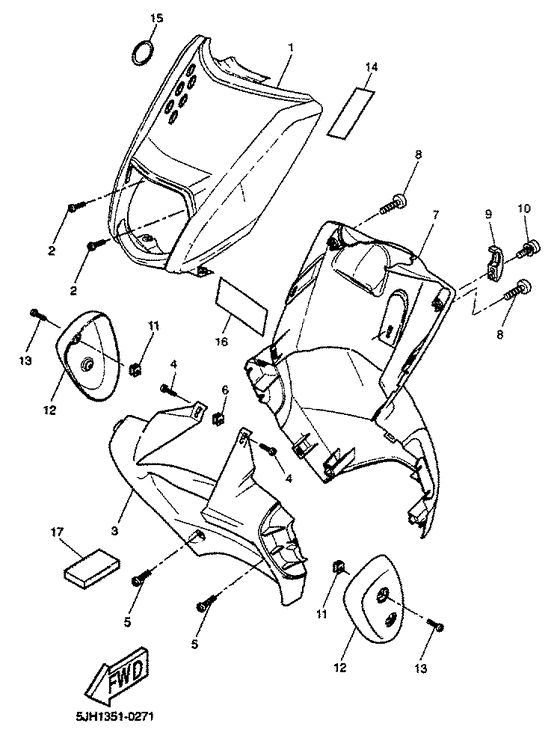

Leg shield Diagram Yamaha EW50 Slider
- Year
- 2001
- Model code
- 5LH3
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5JH-F835G-01-P0
Body, Front Upper 1
(ur mbl2 formbl2) |
5JH-F835G-01-P0 |
— | ||
| replacement | |||||
|
01
|
01
5JH-F835G-02-P0
Body Front Upper 1 Mmbl
(ur mbl2 formbl2) |
5JH-F835G-02-P0 |
— | ||
|
01
|
01
5JH-F835G-01-P2
Body, Front Upper 1
(ur lnme forlnme) |
5JH-F835G-01-P2 |
— | ||
| replacement | |||||
|
01
|
01
5JH-F835G-02-P2
Body Front Upper 1 Lnme
(ur lnme forlnme) |
5JH-F835G-02-P2 |
— | ||
|
01
|
01
5JH-F835G-01-P4
Body, Front Upper 1
(ur dpbmc for dpbmc) |
5JH-F835G-01-P4 |
— | ||
| replacement | |||||
|
01
|
01
5JH-F835G-02-P4
Body Front Upper 1 Dpbmc
(ur dpbmc for dpbmc) |
5JH-F835G-02-P4 |
— | ||
|
02
|
02
90167-05X02-00 Screw, TappingScrew, tapping |
90167-05X02-00 |
US $4.11 |
||
|
03
|
03
5JH-F835J-00-P0
Body, Front Lower 1
(ur mbl2 formbl2) |
5JH-F835J-00-P0 |
— | ||
|
03
|
03
5JH-F835J-00-P2
Body, Front Lower 1
(ur lnme forlnme) |
5JH-F835J-00-P2 |
— | ||
|
03
|
03
5JH-F835J-00-P4
Body, Front Lower 1
(ur dpbmc for dpbmc) |
5JH-F835J-00-P4 |
— | ||
|
04
|
04
90167-05X02-00 Screw, TappingScrew, tapping |
90167-05X02-00 |
US $4.11 |
||
|
05
|
05
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
06
|
06
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
06
|
06
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
07
|
07
5JH-F8311-00-P0
Leg Shield 1
(ur mbl2 formbl2) |
5JH-F8311-00-P0 |
— | ||
| replacement | |||||
|
07
|
07
5JH-F8311-02-P0
Shield Leg 1 Mmbl
(ur mbl2 formbl2) |
5JH-F8311-02-P0 |
— | ||
|
07
|
07
5JH-F8311-00-P2
Leg Shield 1
(ur lnme forlnme) |
5JH-F8311-00-P2 |
— | ||
| replacement | |||||
|
07
|
07
5JH-F8311-02-P2
Leg Shield Lnme
(ur lnme forlnme) |
5JH-F8311-02-P2 |
— | ||
|
07
|
07
5JH-F8311-00-P4
Leg Shield 1
(ur dpbmc for dpbmc) |
5JH-F8311-00-P4 |
— | ||
| replacement | |||||
|
07
|
07
5JH-F8311-02-P4
Leg Shield 1
(ur dpbmc for dpbmc) |
5JH-F8311-02-P4 |
— | ||
|
08
|
08
90167-05X02-00 Screw, TappingScrew, tapping |
90167-05X02-00 |
US $4.11 |
||
|
09
|
09
4SB-F1398-00-00 Hanger, Helmet |
4SB-F1398-00-00 |
US $9.49 |
||
|
10
|
10
90154-06X02-00 Screw, Binding |
90154-06X02-00 |
US $11.19 |
||
|
11
|
11
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
11
|
11
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.48 |
||
|
12
|
12
5JH-F8371-00-00 Damper(ur for mbl2) |
5JH-F8371-00-00 |
US $16.15 |
||
|
12
|
12
5JH-F8371-10-00
Damper
(ur for lnme/dpbmc) |
5JH-F8371-10-00 |
— | ||
|
13
|
13
90169-05X01-00 Tapping Screw |
90169-05X01-00 |
from US $6.66 |
||
|
14
|
14
5JH-F1788-00-00
Graphic
(ur for mbl2) |
5JH-F1788-00-00 |
— | ||
|
14
|
14
5JH-F1788-10-00
Graphic
(ur for lnme) |
5JH-F1788-10-00 |
— | ||
|
14
|
14
5JH-F1788-30-00
Graphic
(ur for dpbmc) |
5JH-F1788-30-00 |
— | ||
|
15
|
15
X01-F153A-10-00
Emblem, Yamaha
|
X01-F153A-10-00 |
— | ||
|
16
|
16
5JH-F832P-10-00
Graphic 18
(ur for lnme) |
5JH-F832P-10-00 |
— | ||
|
16
|
16
5JH-F832P-30-00
Graphic 18
(ur for dpbmc) |
5JH-F832P-30-00 |
— | ||
|
16
|
16
5JH-F832P-00-00
Graphic 18
(ur for mbl2) |
5JH-F832P-00-00 |
— | ||
|
17
|
17
4SB-F174X-00-00 Damper |
4SB-F174X-00-00 |
US $11.33 |
||
