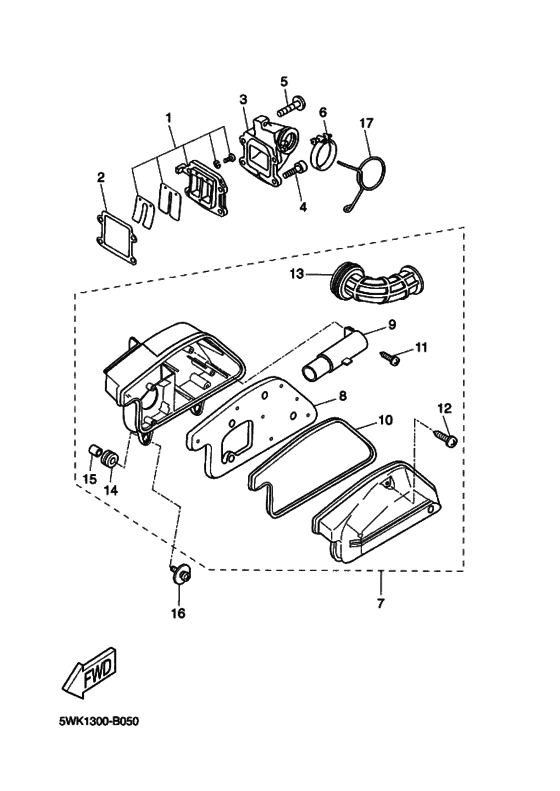

Intake Diagram Yamaha EW50 Slider
- Year
- 2003
- Colour
- White Metallic 4 (WM4; 0831)
- Model code
- 5WK1
- Sales region
- Europe (030)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2EX-13610-00-00 Reed Valve Assy |
2EX-13610-00-00 |
from US $49.32 |
||
|
2
|
2
3WX-13621-00-00 Gasket, Valve Seat |
3WX-13621-00-00 |
from US $8.08 |
||
|
3
|
3
3VL-E3555-00-00
Manifold, Intake
|
3VL-E3555-00-00 |
— | ||
| replacement | |||||
|
3
|
3
3VL-E3555-20-00 Manifold, Intake |
3VL-E3555-20-00 |
from US $49.34 |
||
|
4
|
4
90110-06X03-00
Bolt, Hexagon Socket Head
|
90110-06X03-00 |
— | ||
| replacement | |||||
|
4
|
4
1TK-E5481-00-00 Bolt, Hexagon Socket HeadBolt 1 |
1TK-E5481-00-00 |
US $2.16 |
||
|
5
|
5
90149-06X02-00 Screw |
90149-06X02-00 |
US $2.13 |
||
|
6
|
6
90450-32X02-00
Hose Clamp Assy
|
90450-32X02-00 |
— | ||
|
7
|
7
5FX-E4410-01-00 Air Cleaner Assy |
5FX-E4410-01-00 |
US $95.33 |
||
|
8
|
8
3VL-E4451-01-00 Element, Air Cleaner |
3VL-E4451-01-00 |
from US $12.89 |
||
|
9
|
9
3VL-E4437-00-00 Duct |
3VL-E4437-00-00 |
from US $10.77 |
||
|
10
|
10
3VL-E4452-00-00 Seal |
3VL-E4452-00-00 |
from US $12.89 |
||
|
11
|
11
3VL-E4565-00-00 Screw, Tapping |
3VL-E4565-00-00 |
from US $3.12 |
||
| replacement | |||||
|
11
|
11
97707-50525-00 Screw, Tapping |
97707-50525-00 |
from US $1.36 |
||
|
12
|
12
3VL-E4429-00-00
Screw, Tapping
|
3VL-E4429-00-00 |
— | ||
| replacement | |||||
|
12
|
12
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
13
|
13
4VA-E4453-00-00 Joint, Air Cleaner 1 |
4VA-E4453-00-00 |
US $25.93 |
||
|
14
|
14
90480-12X00-00 Grommet |
90480-12X00-00 |
US $1.28 |
||
| replacement | |||||
|
14
|
14
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
15
|
15
90387-06X06-00 Collar |
90387-06X06-00 |
from US $1.70 |
||
| replacements | |||||
|
15
|
15
90387-067V1-00 Collar(3Kj) |
90387-067V1-00 |
from US $1.70 |
||
|
15
|
15
90387-068J5-00 Collar |
90387-068J5-00 |
from US $1.70 |
||
|
16
|
16
97607-06220-00 Screw, With Washer |
97607-06220-00 |
from US $1.42 |
||
|
17
|
17
90467-24140-00 Clip(3Vr) |
90467-24140-00 |
from US $3.12 |
||
