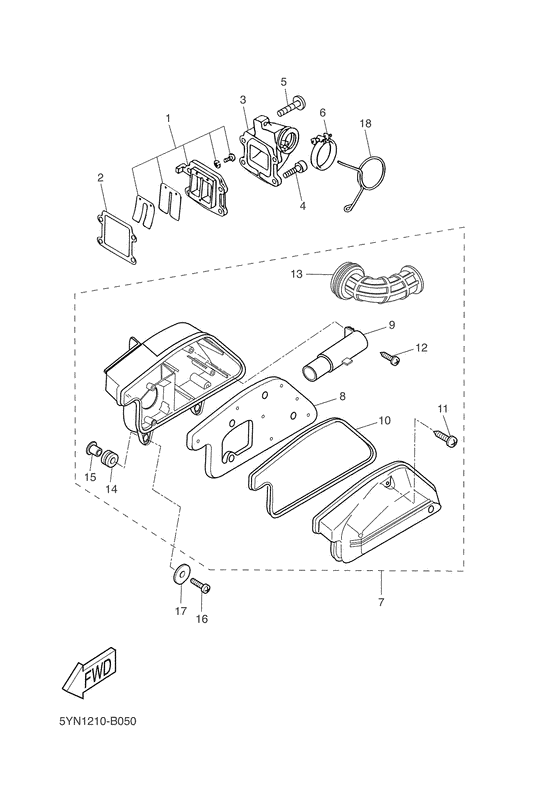

Intake Diagram Yamaha EW50 Slider
- Year
- 2003
- Colour
- Black 2 (BL2; 004B)
- Model code
- 5YN1
- Sales region
- Mexico (010)
- Engine Capacity
- 50
- Model
- EW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2EX-13610-00-00 Reed Valve Assy |
2EX-13610-00-00 |
from US $49.32 |
||
|
02
|
02
3WX-13621-00-00 Gasket, Valve Seat |
3WX-13621-00-00 |
from US $8.08 |
||
|
03
|
03
3VL-E3555-00-00
Manifold, Intake
|
3VL-E3555-00-00 |
— | ||
| replacement | |||||
|
03
|
03
3VL-E3555-20-00 Manifold, Intake |
3VL-E3555-20-00 |
from US $49.34 |
||
|
04
|
04
90110-06X03-00
Bolt, Hexagon Socket Head
|
90110-06X03-00 |
— | ||
| replacement | |||||
|
04
|
04
1TK-E5481-00-00 Bolt, Hexagon Socket HeadBolt 1 |
1TK-E5481-00-00 |
US $2.16 |
||
|
05
|
05
90149-06X02-00 Screw |
90149-06X02-00 |
US $2.13 |
||
|
06
|
06
90450-32X01-00
Hose Clamp Assy
|
90450-32X01-00 |
— | ||
| replacement | |||||
|
06
|
06
90450-32X02-00
Hose Clamp Assy
|
90450-32X02-00 |
— | ||
|
07
|
07
90450-32X02-00
Hose Clamp Assy
|
90450-32X02-00 |
— | ||
|
08
|
08
5FX-E4410-01-00 Air Cleaner Assy |
5FX-E4410-01-00 |
US $95.33 |
||
|
09
|
09
3VL-E4451-01-00 Element, Air Cleaner |
3VL-E4451-01-00 |
from US $12.89 |
||
|
10
|
10
3VL-E4437-00-00 Duct |
3VL-E4437-00-00 |
from US $10.77 |
||
|
11
|
11
3VL-E4452-00-00 Seal |
3VL-E4452-00-00 |
from US $12.89 |
||
|
12
|
12
3VL-E4565-00-00 Screw, Tapping |
3VL-E4565-00-00 |
from US $3.12 |
||
| replacement | |||||
|
12
|
12
97707-50525-00 Screw, Tapping |
97707-50525-00 |
from US $1.36 |
||
|
13
|
13
3VL-E4429-00-00
Screw, Tapping
|
3VL-E4429-00-00 |
— | ||
| replacement | |||||
|
13
|
13
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
14
|
14
4VA-E4453-00-00 Joint, Air Cleaner 1 |
4VA-E4453-00-00 |
US $25.93 |
||
|
15
|
15
90480-12X00-00 Grommet |
90480-12X00-00 |
US $1.28 |
||
| replacement | |||||
|
15
|
15
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
16
|
16
90387-06X06-00 Collar |
90387-06X06-00 |
from US $1.70 |
||
| replacements | |||||
|
16
|
16
90387-067V1-00 Collar(3Kj) |
90387-067V1-00 |
from US $1.70 |
||
|
16
|
16
90387-068J5-00 Collar |
90387-068J5-00 |
from US $1.70 |
||
|
17
|
17
97607-06220-00 Screw, With Washer |
97607-06220-00 |
from US $1.42 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
19
|
19
90467-24140-00 Clip(3Vr) |
90467-24140-00 |
from US $3.12 |
||
