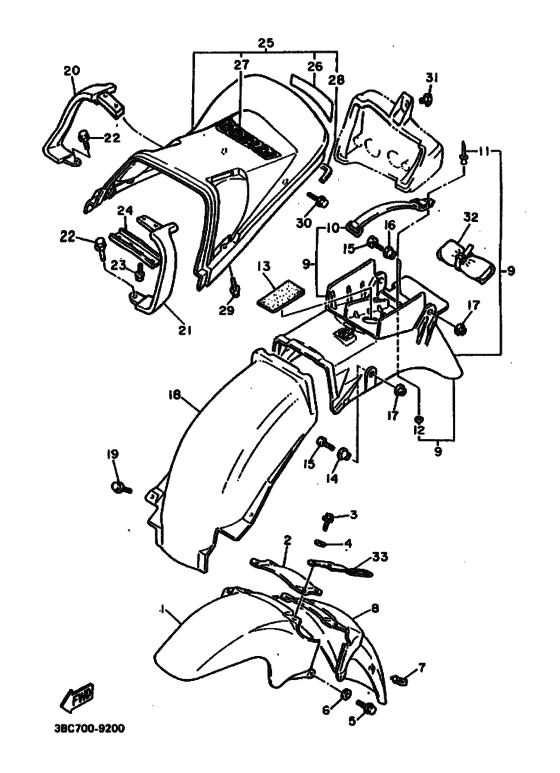

Fender Diagram Yamaha FJ1200
- Year
- 1989
- Colour
- Silky White (SW; 00GE)
- Model code
- 3GP2
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- FJ1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36Y-21511-01-0L
Fender, Front
MARBLE SILVER |
36Y-21511-01-0L |
— | ||
|
2
|
2
36Y-21512-00-00 Bracket, Fender |
36Y-21512-00-00 |
US $71.91 |
||
|
3
|
3
95023-06020-00 Bolt, Flg.(Small Head) |
95023-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
95024-06020-00 Bolt, Flange (Small Head) |
95024-06020-00 |
from US $1.66 |
||
|
4
|
4
90201-06052-00 Washer, Plate (136-22316-00) |
90201-06052-00 |
US $1.56 |
||
| replacement | |||||
|
4
|
4
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
5
|
5
95026-06020-00 Bolt, Flange |
95026-06020-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
6
|
6
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
7
|
7
1A8-21518-00-00 Holder, Cable |
1A8-21518-00-00 |
from US $4.53 |
||
|
8
|
8
36Y-21556-01-0L
Fender, Front 2
MARBLE SILVER |
36Y-21556-01-0L |
— | ||
|
9
|
9
47M-W2161-01-00 Rear Fender |
47M-W2161-01-00 |
US $102.71 |
||
|
10
|
10
36Y-21376-00-00
Band, Tool
|
36Y-21376-00-00 |
— | ||
|
11
|
11
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
12
|
12
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
13
|
13
26H-2848K-00-00
Seat 2
|
26H-2848K-00-00 |
— | ||
|
14
|
14
90387-06648-00 Collar |
90387-06648-00 |
from US $1.56 |
||
|
15
|
15
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
16
|
16
90387-064L2-00 Collar |
90387-064L2-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
90387-06648-00 Collar |
90387-06648-00 |
from US $1.56 |
||
|
17
|
17
95706-06500-00 Nut, With Washer |
95706-06500-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
18
|
18
36Y-21629-00-00
Guard, Mud
|
36Y-21629-00-00 |
— | ||
|
19
|
19
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
19
|
19
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
19
|
19
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
20
|
20
1TX-21645-00-00 Stay, Rear |
1TX-21645-00-00 |
US $245.72 |
||
|
21
|
21
1TX-21644-00-00 Stay, Rear |
1TX-21644-00-00 |
US $245.72 |
||
|
22
|
22
958-21080-20-00
Bolt, Flange (95811-08020-00)
|
958-21080-20-00 |
— | ||
| replacement | |||||
|
22
|
22
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
23
|
23
95822-06014-00 Bolt, Flange |
95822-06014-00 |
from US $1.18 |
||
| replacement | |||||
|
23
|
23
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
24
|
24
1TX-2164F-00-00
Stay 1
|
1TX-2164F-00-00 |
— | ||
|
25
|
25
3CV-Y2165-10-6X Cover, Rear FenderSILKY WHITE/MARBLE SILVER |
3CV-Y2165-10-6X |
US $611.05 |
||
|
26
|
26
99254-00020-00 Emblem, YamahaFOR SW |
99254-00020-00 |
from US $8.64 |
||
| replacement | |||||
|
26
|
26
99244-00080-00 Emblem, YamahaFOR SW |
99244-00080-00 |
from US $8.74 |
||
|
27
|
27
3CV-21663-10-00
Graphic, Tailcover
FOR SW |
3CV-21663-10-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
FOR SW |
999-99999-99-00 |
— | ||
|
28
|
28
36Y-21649-00-00
Mold 2
|
36Y-21649-00-00 |
— | ||
| replacement | |||||
|
28
|
28
1TX-28346-00-00
Mold 2
|
1TX-28346-00-00 |
— | ||
|
29
|
29
90159-05022-00 Screw, With Washer |
90159-05022-00 |
from US $1.70 |
||
| replacement | |||||
|
29
|
29
90159-05044-00 Screw, With Washer |
90159-05044-00 |
from US $1.70 |
||
|
30
|
30
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
30
|
30
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
31
|
31
36Y-21639-00-00
Damper 2
|
36Y-21639-00-00 |
— | ||
|
32
|
32
36Y-28100-01-00 Tool Kit |
36Y-28100-01-00 |
US $232.81 |
||
|
33
|
33
3CV-21596-00-00
Holder
|
3CV-21596-00-00 |
— | ||
