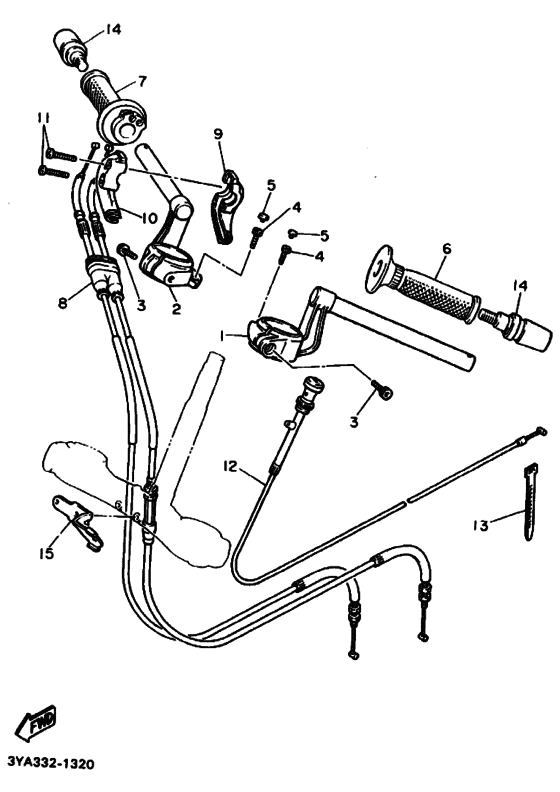

Steering handle & cable Diagram Yamaha FJ1200
- Year
- 1991
- Colour
- Silky White (SW; 00GE)
- Model code
- 4AH3
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- FJ1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XW-26121-00-00 Handlebar Lh |
3XW-26121-00-00 |
US $228.13 |
||
|
2
|
2
3XW-26122-00-00
Handlebar Rh
|
3XW-26122-00-00 |
— | ||
|
3
|
3
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
3
|
3
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
4
|
4
91316-06014-00 Bolt |
91316-06014-00 |
from US $1.28 |
||
| replacements | |||||
|
4
|
4
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
4
|
4
913-17060-14-00 Bolt |
913-17060-14-00 |
from US $1.39 |
||
|
5
|
5
2H9-23469-00-00 Plug |
2H9-23469-00-00 |
from US $1.52 |
||
| replacement | |||||
|
5
|
5
903-38050-10-00 Plug |
903-38050-10-00 |
from US $1.39 |
||
|
6
|
6
31A-26241-00-00 Grip |
31A-26241-00-00 |
from US $10.10 |
||
|
7
|
7
36Y-26240-00-00 Grip Assembly |
36Y-26240-00-00 |
from US $24.83 |
||
|
8
|
8
3XW-26302-00-00 Throttle Cable Assembly |
3XW-26302-00-00 |
US $102.83 |
||
|
9
|
9
3XW-26281-00-00 Cap, Grip Upper |
3XW-26281-00-00 |
from US $22.24 |
||
| replacement | |||||
|
9
|
9
3XW-26281-01-00 Cap, Grip Upper |
3XW-26281-01-00 |
from US $22.24 |
||
|
10
|
10
3XW-26282-00-00 Cap, Grip Under |
3XW-26282-00-00 |
from US $28.76 |
||
| replacement | |||||
|
10
|
10
3XW-26282-01-00 Cap, Grip Under |
3XW-26282-01-00 |
from US $13.48 |
||
|
11
|
11
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
12
|
12
1TX-26330-00-00 Starter Cable Assembly |
1TX-26330-00-00 |
from US $99.34 |
||
|
13
|
13
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
13
|
13
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
14
|
14
36Y-26246-00-00 End, Grip |
36Y-26246-00-00 |
from US $48.22 |
||
|
15
|
15
3CV-21343-00-00
Bracket, Horn
|
3CV-21343-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
