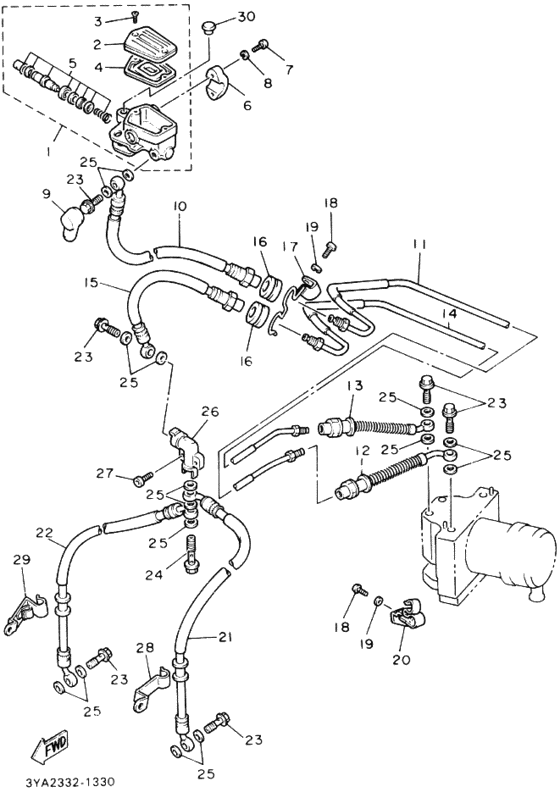

Front master cylinder Diagram Yamaha FJ1200
- Year
- 1991
- Colour
- Silky White (SW; 00GE)
- Model code
- 4CC2
- Sales region
- Japan (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- FJ1200A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36Y-25850-01-00
Master Cylinder Assy
|
36Y-25850-01-00 |
— | ||
| replacements | |||||
|
1
|
1
3HE-2583T-01-00 Master Cylinder Assy |
3HE-2583T-01-00 |
from US $252.83 |
||
|
1
|
1
3HE-2583T-02-00 MASTER CYLINDER ASSY |
3HE-2583T-02-00 |
from US $229.17 |
||
|
2
|
2
36Y-25852-01-00
Cap, Reservoir
・キヤツプ，リザーバ; |
36Y-25852-01-00 |
— | ||
| replacements | |||||
|
2
|
2
3HE-25852-01-00 Cap, Reservoir・キヤツプ，リザーバ; |
3HE-25852-01-00 |
from US $28.31 |
||
|
2
|
2
18P-H2310-04-00 Ignition Coil Assy・キヤツプ，リザーバ; |
18P-H2310-04-00 |
US $17.91 |
||
|
3
|
3
987-06040-12-00
Screw, Flat Head
・スクリユ，フラツトヘツド; |
987-06040-12-00 |
— | ||
| replacement | |||||
|
3
|
3
98707-04012-00 Screw, Flat Head・スクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
4
|
4
36Y-25854-00-00 Diaphragm, Reservoir・ダイヤフラム，リザーバ; |
36Y-25854-00-00 |
from US $26.49 |
||
|
5
|
5
36Y-W0041-00-00 Cylinder Kit, Master・シリンダキツト，マスタ; |
36Y-W0041-00-00 |
from US $86.69 |
||
|
6
|
6
36Y-25867-00-00 Bracket, Master Cylinder |
36Y-25867-00-00 |
from US $19.41 |
||
|
7
|
7
913-16060-25-00
Bolt
ボルト，ヘキダゴンソケツトヘツド; |
913-16060-25-00 |
— | ||
| replacement | |||||
|
7
|
7
913-17060-25-00 Boltボルト，ヘキダゴンソケツトヘツド; |
913-17060-25-00 |
from US $1.39 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
9
|
9
4L0-25862-00-00 Boot, Master Cylinderブーツ，マスタシリンダ; |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
9
|
9
4L0-25862-01-00 Boot, Master Cylinderブーツ，マスタシリンダ; |
4L0-25862-01-00 |
from US $10.34 |
||
|
10
|
10
3YA-25872-00-00
Brake Hose Set(3Ya)
ホース，ブレーキ １; |
3YA-25872-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99025-72-00
Brake Hose Set(3Ya)
ホース，ブレーキ １; |
999-99025-72-00 |
— | ||
|
11
|
11
3YA-25871-00-00
Pipe, Brake
パイプ，ブレーキ; |
3YA-25871-00-00 |
— | ||
|
12
|
12
3YA-25874-00-00 Hose, Brakeホース，ブレーキ; |
3YA-25874-00-00 |
US $18.40 |
||
| replacement | |||||
|
12
|
12
999-99025-73-00
Brake Hose Set(3Ya)
ホース，ブレーキ; |
999-99025-73-00 |
— | ||
|
13
|
13
3YA-2581J-00-00 Hose, Brake 4ホース，ブレーキ ４; |
3YA-2581J-00-00 |
US $13.45 |
||
| replacement | |||||
|
13
|
13
999-99025-74-00
Brake Hose Set(3Ya)
ホース，ブレーキ ４; |
999-99025-74-00 |
— | ||
|
14
|
14
3YA-25882-00-00 Pipe, Brake 2パイプ，ブレーキ ２; |
3YA-25882-00-00 |
US $57.47 |
||
|
15
|
15
3YA-2581K-00-00
Brake Hose Set(3Ya)
ホース，ブレーキ ５; |
3YA-2581K-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99025-75-00
Brake Hose Set(3Ya)
ホース，ブレーキ ５; |
999-99025-75-00 |
— | ||
|
16
|
16
341-25881-00-00 Protector, Brake Hoseプロテクタ，ブレーキホース; |
341-25881-00-00 |
from US $13.95 |
||
|
17
|
17
3YA-25886-00-00
Holder, Brake Hose
ホルダ，ブレーキホース; |
3YA-25886-00-00 |
— | ||
|
18
|
18
98501-06010-00 Screw Pan Head |
98501-06010-00 |
US $1.42 |
||
| replacement | |||||
|
18
|
18
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
19
|
19
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
3YA-25887-00-00
Holder, Brake Hose
ホルダ，ブレーキホース; |
3YA-25887-00-00 |
— | ||
|
21
|
21
3XW-25872-00-00
Brake Hose Set(3Xw)
ホース，ブレーキ １; |
3XW-25872-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99025-08-00
Brake Hose Set(3Xw)
ホース，ブレーキ １; |
999-99025-08-00 |
— | ||
|
22
|
22
3XW-25873-00-00
Brake Hose Set(3Xw)
ホース，ブレーキ ２; |
3XW-25873-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99025-16-00
Brake Hose Set(3Xw)
ホース，ブレーキ ２; |
999-99025-16-00 |
— | ||
|
23
|
23
904-01100-96-00
Bolt, Union
|
904-01100-96-00 |
— | ||
| replacement | |||||
|
23
|
23
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
24
|
24
90401-10095-00 Bolt, Union |
90401-10095-00 |
from US $9.49 |
||
| replacement | |||||
|
24
|
24
90401-10038-00 Bolt, Union |
90401-10038-00 |
from US $9.49 |
||
|
25
|
25
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
25
|
25
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
26
|
26
11U-25885-00-00 Joint |
11U-25885-00-00 |
US $54.88 |
||
|
27
|
27
913-16060-25-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-25-00 |
— | ||
| replacement | |||||
|
27
|
27
913-17060-25-00 Boltボルト，ヘキサゴンソケツトヘツド; |
913-17060-25-00 |
from US $1.39 |
||
|
28
|
28
3CV-25875-00-00
Holder, Brake Hose 1
ホルダ，ブレーキホース １; |
3CV-25875-00-00 |
— | ||
|
29
|
29
3YA-25876-00-00
Holder, Brake Hose 2
ホルダ，ブレーキホース ２; |
3YA-25876-00-00 |
— | ||
|
30
|
30
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
