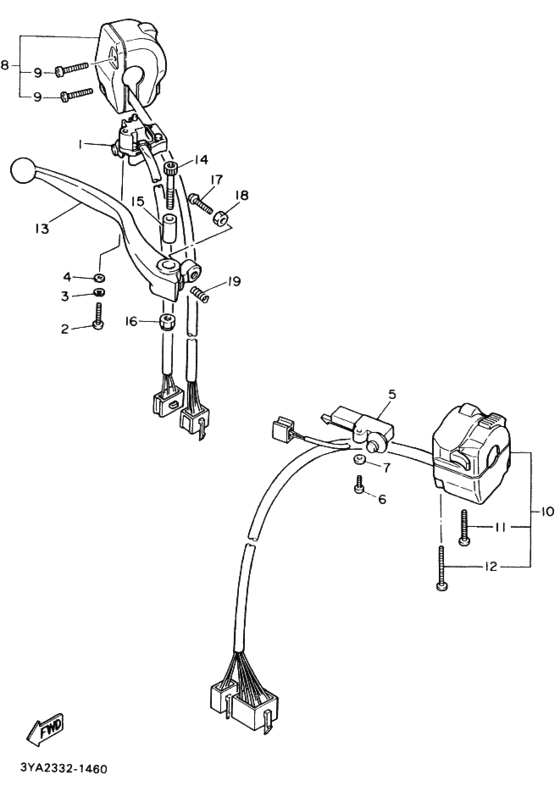

Handle switch & lever Diagram Yamaha FJ1200
- Year
- 1991
- Colour
- Silky White (SW; 00GE)
- Model code
- 4CC2
- Sales region
- Japan (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- FJ1200A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3YA-83980-00-00 Stop Switch Assemblyassy |
3YA-83980-00-00 |
US $97.11 |
||
|
2
|
2
98506-04030-00 Screw,pan Headスクリユ、パンヘツド; |
98506-04030-00 |
US $2.13 |
||
| replacement | |||||
|
2
|
2
985-17040-30-00
Screw, Pan Head(1Ke)
スクリユ、パンヘツド; |
985-17040-30-00 |
— | ||
|
3
|
3
92906-04100-00 Washer, Springワツシヤ、スプリング; |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
3
|
3
92907-04100-00 Washer, Springワツシヤ、スプリング; |
92907-04100-00 |
from US $1.21 |
||
|
3
|
3
999-99999-99-00
Not Available
ワツシヤ、スプリング; |
999-99999-99-00 |
— | ||
|
4
|
4
92906-04600-00 Washerワツシヤ、プレート; |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
92907-04600-00 Washer(Jf2)ワツシヤ、プレート; |
92907-04600-00 |
from US $1.07 |
||
|
5
|
5
3XW-82917-00-00 Switch |
3XW-82917-00-00 |
US $34.85 |
||
|
6
|
6
985-06040-18-00
Screw, Panhead
スクリユ、パンヘツド; |
985-06040-18-00 |
— | ||
| replacement | |||||
|
6
|
6
98507-04018-00 Screw, Pan Headスクリユ、パンヘツド; |
98507-04018-00 |
from US $1.56 |
||
|
7
|
7
92906-04600-00 Washerワツシヤ、プレート; |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
92907-04600-00 Washer(Jf2)ワツシヤ、プレート; |
92907-04600-00 |
from US $1.07 |
||
|
8
|
8
3YA-83975-00-00
Switch, Handle 2
スイツチ、ハンドル ２; |
3YA-83975-00-00 |
— | ||
|
9
|
9
98506-05022-00 Screw, Pan Head・スクリユ、パンヘツド; |
98506-05022-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
90157-05057-00 Screw, Pan Head(41N)・スクリユ、パンヘツド; |
90157-05057-00 |
from US $1.98 |
||
|
10
|
10
4CC-83969-00-00
Switch, Handle 5
スイツチ、ハンドル ５; |
4CC-83969-00-00 |
— | ||
|
11
|
11
985-06050-30-00
Screw, Pan Head
・スクリユ、パンヘツド; |
985-06050-30-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-05030-00 Screw, Pan Head・スクリユ、パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
12
|
12
98506-05040-00 Screw, Pan Head・スクリユ、パンヘツド; |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98507-05040-00 Screw, Pan Head・スクリユ、パンヘツド; |
98507-05040-00 |
from US $1.42 |
||
|
13
|
13
3YA-83922-00-00 Lever Rレバー ２; |
3YA-83922-00-00 |
US $29.81 |
||
|
14
|
14
90110-06074-00 Bolt, Hexagon Socket Headボルト、ヘキサゴンソケツトヘツド; |
90110-06074-00 |
from US $1.84 |
||
|
15
|
15
36Y-83913-01-00 Collar, Lever 1カラー、レバー １; |
36Y-83913-01-00 |
from US $6.09 |
||
|
16
|
16
956-16061-00-00
Nut (17W)
ナツト、Ｕ; |
956-16061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, Uナツト、Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
17
|
17
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
18
|
18
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
19
|
19
90501-10312-00 Spring, Compressionスプリング、コンプレツシヨン; |
90501-10312-00 |
from US $1.66 |
||
