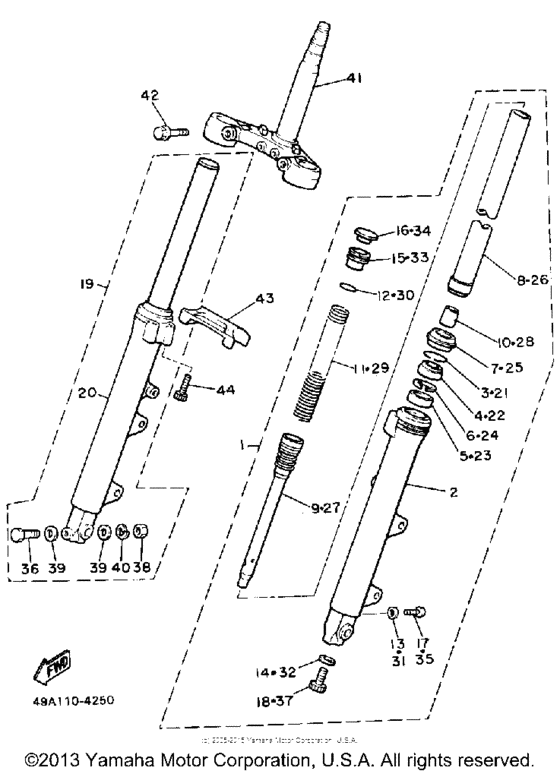

Front fork Diagram Yamaha FJ600
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 600
- Model
- FJ600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20
|
20
49A-23102-00-00
Front Fork Assembly Lassembly (
|
49A-23102-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
33M-23126-00-00
Tube, Outer 1
|
33M-23126-00-00 |
— | ||
|
20
|
20
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
20
|
20
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
20
|
20
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
20
|
20
30X-23125-00-00 Metal, Slide 1 |
30X-23125-00-00 |
from US $29.13 |
||
|
20
|
20
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
20
|
20
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
20
|
20
3KM-23110-00-00
Inner Tube 1 Comp. 1
COMP. 1 |
3KM-23110-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
COMP. 1 |
999-99999-99-00 |
— | ||
|
20
|
20
49A-23170-00-00
Cylinder, Frtfrk
|
49A-23170-00-00 |
— | ||
|
20
|
20
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
20
|
20
49A-23141-00-00
Spring, Front Fork
|
49A-23141-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
20
|
20
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
20
|
20
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
20
|
20
31A-23111-31-00 Bolt, Cap |
31A-23111-31-00 |
US $59.54 |
||
|
20
|
20
16G-23168-00-00 Cap, Front Fork |
16G-23168-00-00 |
from US $11.76 |
||
| replacement | |||||
|
20
|
20
26H-23168-00-00 Cap, Front Fork |
26H-23168-00-00 |
from US $11.76 |
||
|
20
|
20
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
20
|
20
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
20
|
20
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
20
|
20
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
20
|
20
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
20
|
20
49A-23103-00-00
Front Fork Assembly Rassembly (
|
49A-23103-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
33M-23136-00-00
Tube, Outer 2
|
33M-23136-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
4U8-23356-10-00 Bolt |
4U8-23356-10-00 |
from US $2.41 |
||
| replacement | |||||
|
20
|
20
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
20
|
20
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
20
|
20
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
20
|
20
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
20
|
20
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
20
|
20
49A-23340-00-00
Under Bracketcomp
|
49A-23340-00-00 |
— | ||
|
20
|
20
4G0-23346-00-00
Bolt 1
|
4G0-23346-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
31A-2313A-30-00
Brace, Fork
|
31A-2313A-30-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
31A-23181-30-00 Bolt, Hexagon Socket Head |
31A-23181-30-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
