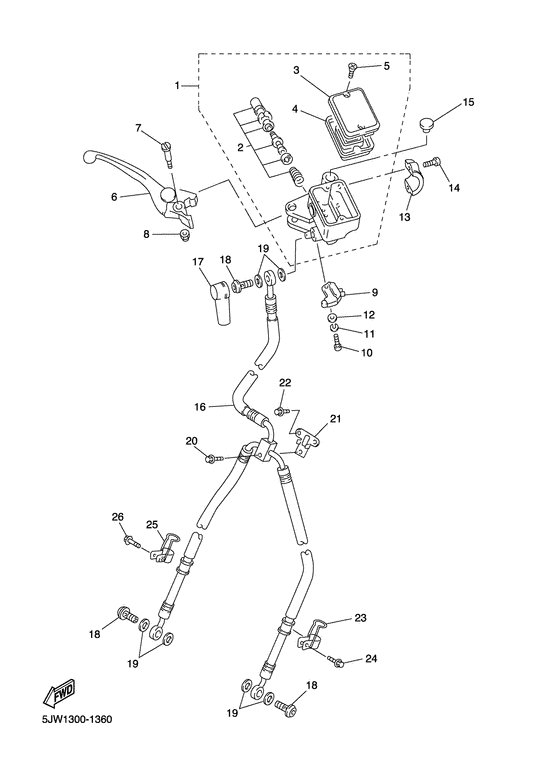

Front master cylinder Diagram Yamaha FJR1300
- Year
- 2001
- Model code
- 5JW2
- Sales region
- France (010)
- Engine Capacity
- 1300
- Model
- FJR1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5DM-W2587-00-00 Master Cylinder Sub Assy |
5DM-W2587-00-00 |
from US $280.39 |
||
| replacement | |||||
|
01
|
01
5DM-W2587-01-00 Master Cylinder Sub Assy |
5DM-W2587-01-00 |
from US $280.39 |
||
|
02
|
02
5DM-W0041-50-00 Cylinder Kit, Master |
5DM-W0041-50-00 |
from US $44.57 |
||
|
03
|
03
4HM-W2585-00-00 Reservoir Cap Set |
4HM-W2585-00-00 |
from US $28.62 |
||
| replacement | |||||
|
03
|
03
4HM-W2585-01-00 Reservoir Cap Set |
4HM-W2585-01-00 |
from US $28.62 |
||
|
04
|
04
4HM-25854-00-00 Diaphragm, Reservoir |
4HM-25854-00-00 |
from US $17.48 |
||
|
05
|
05
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
05
|
05
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
06
|
06
5EB-83922-01-00 Lever 2 |
5EB-83922-01-00 |
from US $44.57 |
||
|
07
|
07
3FV-2589F-00-00 Bolt, Lever |
3FV-2589F-00-00 |
from US $7.21 |
||
|
08
|
08
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
08
|
08
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
09
|
09
3FV-83980-00-00 Front Stop Switch Assy |
3FV-83980-00-00 |
from US $22.39 |
||
| replacement | |||||
|
09
|
09
4HM-83980-00-00 Front Stop Switch Assy |
4HM-83980-00-00 |
from US $24.97 |
||
|
10
|
10
98502-04012-00 Screw, Pan Head |
98502-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
10
|
10
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
11
|
11
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
929-02046-00-00 Washer, Plate |
929-02046-00-00 |
from US $0.95 |
||
| replacement | |||||
|
12
|
12
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
13
|
13
4HM-25867-00-00 Bracket, Master Cylinder |
4HM-25867-00-00 |
from US $21.37 |
||
|
14
|
14
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
15
|
15
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
16
|
16
5JW-25872-00-00 Hose, Brake 1 |
5JW-25872-00-00 |
US $163.50 |
||
| replacement | |||||
|
16
|
16
5JW-25872-01-00
Hose, Brake 1
|
5JW-25872-01-00 |
— | ||
|
17
|
17
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
18
|
18
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
19
|
19
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
19
|
19
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
20
|
20
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
20
|
20
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
21
|
21
5JW-25886-00-00 Holder, Brake Hose |
5JW-25886-00-00 |
US $6.39 |
||
|
22
|
22
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
23
|
23
4KG-25887-00-00 Holder, Brake Hose |
4KG-25887-00-00 |
from US $24.51 |
||
| replacement | |||||
|
23
|
23
4KG-25887-01-00 Holder, Brake Hose |
4KG-25887-01-00 |
from US $27.88 |
||
|
24
|
24
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
|
25
|
25
4KG-25876-00-00 Holder, Brake Hose 2 |
4KG-25876-00-00 |
from US $18.86 |
||
| replacement | |||||
|
25
|
25
4KG-25876-01-00 Holder, Brake Hose 2 |
4KG-25876-01-00 |
from US $19 |
||
|
26
|
26
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
