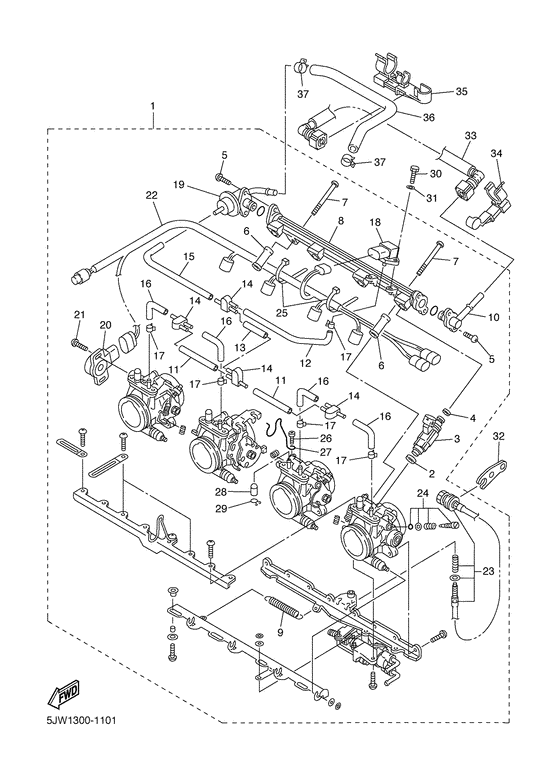

Intake 2 Diagram Yamaha FJR1300
- Year
- 2001
- Model code
- 5JW2
- Sales region
- France (010)
- Engine Capacity
- 1300
- Model
- FJR1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5JW-13750-00-00
Throttle Body Assy
|
5JW-13750-00-00 |
— | ||
| replacements | |||||
|
01
|
01
5JW-13750-11-00
Throttle Body Assy
|
5JW-13750-11-00 |
— | ||
|
01
|
01
5JW-13750-10-00
Throttle Body Assy
|
5JW-13750-10-00 |
— | ||
|
02
|
02
90430-09002-00 Gasket |
90430-09002-00 |
from US $7.42 |
||
|
03
|
03
5FL-13761-00-00 Injector |
5FL-13761-00-00 |
from US $171.32 |
||
|
04
|
04
5FL-14147-00-00 O-Ring |
5FL-14147-00-00 |
from US $9.78 |
||
|
05
|
05
98502-05012-00 Screw, Pan Head |
98502-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
05
|
05
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
05
|
05
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
06
|
06
5JW-14148-00-00
Pipe
|
5JW-14148-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
98502-06050-00 Screw, Pan Head |
98502-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
07
|
07
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
08
|
08
5JW-13938-00-00 Pipe |
5JW-13938-00-00 |
from US $169.24 |
||
|
09
|
09
5JW-14589-00-00 Spring |
5JW-14589-00-00 |
from US $7.65 |
||
|
10
|
10
5JW-12881-00-00 Pipe, Fuel Injection 1 |
5JW-12881-00-00 |
from US $66.98 |
||
|
11
|
11
5JW-14348-00-00 Pipe 1 |
5JW-14348-00-00 |
from US $5.81 |
||
|
12
|
12
5JW-14349-00-00 Pipe |
5JW-14349-00-00 |
US $10.20 |
||
|
13
|
13
5JW-14396-00-00 Pipe |
5JW-14396-00-00 |
from US $4.68 |
||
|
14
|
14
3XV-14251-00-00 Nipple |
3XV-14251-00-00 |
from US $22.67 |
||
|
15
|
15
5JW-14987-00-00 Hose |
5JW-14987-00-00 |
from US $9.07 |
||
|
16
|
16
5JW-24311-00-00 Pipe, Fuel 1 |
5JW-24311-00-00 |
from US $4.39 |
||
|
17
|
17
5DM-14919-00-00 Clip |
5DM-14919-00-00 |
from US $4.53 |
||
|
18
|
18
5JW-82380-00-00 Sensor, Pressure |
5JW-82380-00-00 |
from US $210 |
||
|
19
|
19
5JW-13906-00-00 Regulator, Pressure |
5JW-13906-00-00 |
from US $145.07 |
||
|
20
|
20
4SV-85885-00-00
Throttle Position Sensor Assy
|
4SV-85885-00-00 |
— | ||
| replacement | |||||
|
20
|
20
4HD-85885-00-00 Throttle Sensor Assy |
4HD-85885-00-00 |
from US $321.91 |
||
|
21
|
21
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
22
|
22
5JW-82509-00-00 Wire, Sub Lead |
5JW-82509-00-00 |
US $163.03 |
||
| replacement | |||||
|
22
|
22
5JW-82509-10-00 Wire, Sub Lead |
5JW-82509-10-00 |
from US $163.03 |
||
|
23
|
23
5JW-14103-00-00 Throttle Screw Set |
5JW-14103-00-00 |
from US $53.21 |
||
|
24
|
24
5JW-14104-00-00 Air Screw Set |
5JW-14104-00-00 |
from US $17.48 |
||
|
25
|
25
4KM-14137-00-00 Clip |
4KM-14137-00-00 |
from US $7.69 |
||
|
26
|
26
98502-05006-00 Screw, Pan Head |
98502-05006-00 |
from US $0.68 |
||
|
27
|
27
5JW-14139-00-00 Clip, Pipe |
5JW-14139-00-00 |
US $10.53 |
||
|
28
|
28
895-14169-00-00 Cap |
895-14169-00-00 |
from US $3.38 |
||
|
29
|
29
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.74 |
||
|
30
|
30
97007-05016-00 Bolt, Hex. Head |
97007-05016-00 |
from US $2.41 |
||
| replacement | |||||
|
30
|
30
97017-05016-00 Bolt, Hex. Head |
97017-05016-00 |
from US $2.41 |
||
|
31
|
31
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
32
|
32
5EB-14413-00-00 Stay |
5EB-14413-00-00 |
from US $2.64 |
||
|
33
|
33
5JW-13971-00-00 Pipe, Fuel 1 |
5JW-13971-00-00 |
from US $67.55 |
||
|
34
|
34
90464-16008-00 Clamp |
90464-16008-00 |
US $14.54 |
||
|
35
|
35
90464-16005-00 Clamp |
90464-16005-00 |
from US $7.49 |
||
|
36
|
36
5JW-13972-00-00
Pipe, Fuel 2
|
5JW-13972-00-00 |
— | ||
|
37
|
37
90467-12003-00 Clip |
90467-12003-00 |
from US $3.54 |
||
