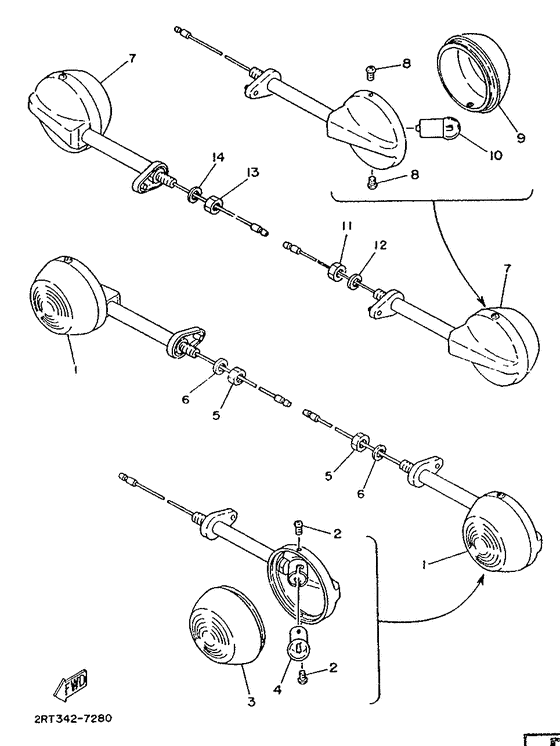

Flasher light Diagram Yamaha FS1
- Year
- 1987
- Colour
- French Blue (FBL; 00G3)
- Model code
- 2RT
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- FS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2M6-83310-N0-00
Front Flasher Light Assy 1
|
2M6-83310-N0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
2N3-83333-N0-00 Screw, Lens Fitting |
2N3-83333-N0-00 |
US $1.21 |
||
| replacement | |||||
|
02
|
02
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
03
|
03
1Y1-83312-01-00 Lens, Flasher |
1Y1-83312-01-00 |
US $18.99 |
||
|
04
|
04
152-83311-10-00 Bulb 6V 10W |
152-83311-10-00 |
US $2.77 |
||
|
05
|
05
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
05
|
05
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
06
|
06
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
07
|
07
3F5-83330-N0-00
Rear Flasher Lamp Assy
|
3F5-83330-N0-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
2N3-83333-N0-00 Screw, Lens Fitting |
2N3-83333-N0-00 |
US $1.21 |
||
| replacement | |||||
|
08
|
08
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
09
|
09
1Y1-83312-01-00 Lens, Flasher |
1Y1-83312-01-00 |
US $18.99 |
||
|
10
|
10
152-83311-10-00 Bulb 6V 10W |
152-83311-10-00 |
US $2.77 |
||
|
11
|
11
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
13
|
13
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
