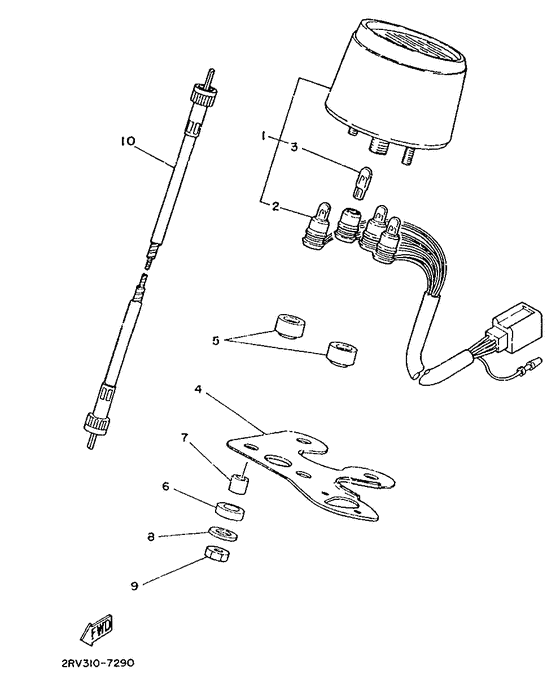

Meter Diagram Yamaha FS1
- Year
- 1987
- Colour
- French Blue (FBL; 00G3)
- Model code
- 2RV
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- FS1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2RV-83510-G0-00
Speedometer Assy
|
2RV-83510-G0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
2RV-83509-00-00
Socket Cord Assy
|
2RV-83509-00-00 |
— | ||
|
03
|
03
4N0-83516-00-00 Bulb |
4N0-83516-00-00 |
from US $2.02 |
||
|
04
|
04
1U0-83519-00-98
Bracket, Meter
|
1U0-83519-00-98 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
1M3-83513-00-00
Damper
|
1M3-83513-00-00 |
— | ||
|
06
|
06
355-83526-00-00 Damper 2 |
355-83526-00-00 |
from US $2.98 |
||
|
07
|
07
355-83522-00-00 Collar |
355-83522-00-00 |
US $9.79 |
||
|
08
|
08
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $2.13 |
||
|
09
|
09
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
09
|
09
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
10
|
10
341-83550-01-00 Speedometer Cable Assy |
341-83550-01-00 |
from US $28.22 |
||
| replacement | |||||
|
10
|
10
16M-83550-01-00 Speedometer Cable Assy |
16M-83550-01-00 |
from US $44.83 |
||
