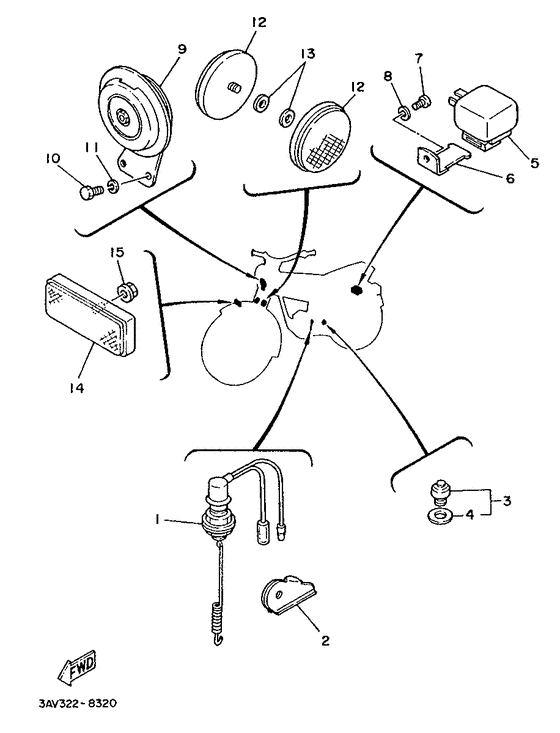

Electrical 2 Diagram Yamaha FS1
- Year
- 1988
- Colour
- French Blue (FBL; 00G3)
- Model code
- 3AV
- Sales region
- Sweden (999)
- Engine Capacity
- 50
- Model
- FS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
205-82530-01-00
Stop Switch Assembly
|
205-82530-01-00 |
— | ||
| replacement | |||||
|
01
|
01
205-82530-03-00
Stop Switch Assy
|
205-82530-03-00 |
— | ||
|
02
|
02
205-82539-00-00
Stay, Stop Switch
|
205-82539-00-00 |
— | ||
|
03
|
03
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
03
|
03
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
04
|
04
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $1.28 |
||
| replacement | |||||
|
04
|
04
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
05
|
05
38A-83350-10-00 Flasher Relay Assy |
38A-83350-10-00 |
US $51.12 |
||
|
06
|
06
474-83352-00-00
Bracket, Flasher Relay 1
|
474-83352-00-00 |
— | ||
|
07
|
07
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
07
|
07
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
08
|
08
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
09
|
09
2A7-83371-10-00
Horn
|
2A7-83371-10-00 |
— | ||
|
10
|
10
97021-06010-00 Bolt(1Kt) |
97021-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
13
|
13
90430-06012-00 Washer, Plate |
90430-06012-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
|
14
|
14
34U-85110-00-00
Reflector Assy
|
34U-85110-00-00 |
— | ||
|
15
|
15
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
