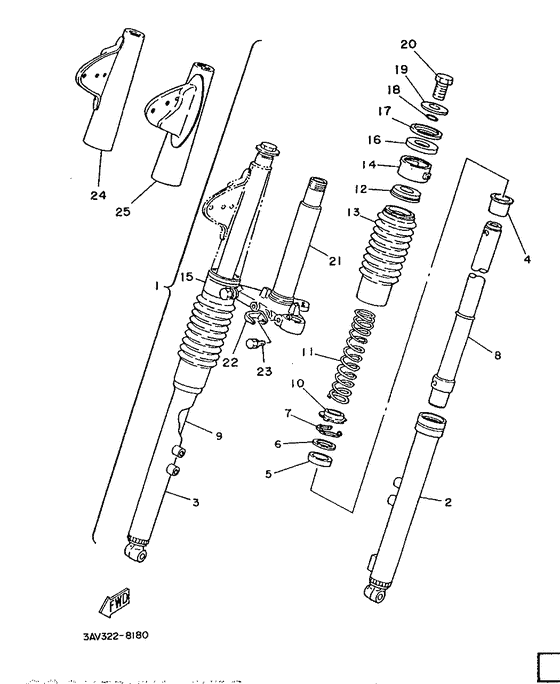

Front fork Diagram Yamaha FS1
- Year
- 1988
- Colour
- French Blue (FBL; 00G3)
- Model code
- 3AV
- Sales region
- Sweden (999)
- Engine Capacity
- 50
- Model
- FS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AV-23101-00-00
Front Fork Assy
|
3AV-23101-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3W3-23126-00-35
Tube, Outer (Left)
Silver |
3W3-23126-00-35 |
— | ||
|
03
|
03
3W3-23136-00-35
Tube, Outer (Right)
Silver |
3W3-23136-00-35 |
— | ||
|
04
|
04
367-23125-60-00 Metal, Slide 1 |
367-23125-60-00 |
from US $24.51 |
||
|
05
|
05
1T8-23145-00-00 Oil Seal |
1T8-23145-00-00 |
from US $16.43 |
||
| replacement | |||||
|
05
|
05
3VR-23145-00-00 Oil Seal |
3VR-23145-00-00 |
from US $16.43 |
||
|
06
|
06
367-23146-60-00 Washer, Oil Seal |
367-23146-60-00 |
US $12.33 |
||
|
07
|
07
1T8-23156-00-00 Ring, Snap |
1T8-23156-00-00 |
from US $4.82 |
||
|
08
|
08
3E9-23124-00-00
Tube, Inner 1
|
3E9-23124-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
3E9-23134-00-00 Tube, Inner 2 |
3E9-23134-00-00 |
US $189.32 |
||
|
10
|
10
3W3-23117-00-00 Guide, Spring |
3W3-23117-00-00 |
US $22.53 |
||
|
11
|
11
481-23141-01-00 Spring, Front Fork |
481-23141-01-00 |
US $55.26 |
||
|
12
|
12
209-23142-40-00 Seat, Spring Upper |
209-23142-40-00 |
US $10.34 |
||
|
13
|
13
3W3-23191-00-00
Boot
|
3W3-23191-00-00 |
— | ||
|
14
|
14
353-23122-91-00
Cover, Outer 1
|
353-23122-91-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
353-23132-91-00
Cover, Outer 2
|
353-23132-91-00 |
— | ||
|
16
|
16
207-23163-00-00 Gasket |
207-23163-00-00 |
US $9.98 |
||
|
17
|
17
201-23116-00-00 Guide, Cover Lower |
201-23116-00-00 |
US $11.76 |
||
|
18
|
18
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
19
|
19
207-23112-00-00 Washer, Cap |
207-23112-00-00 |
from US $14.45 |
||
|
20
|
20
395-23111-00-00 Bolt, Cap |
395-23111-00-00 |
US $20.71 |
||
|
21
|
21
1Y2-23340-30-33
Under Bracket Comp
Yamaha black |
1Y2-23340-30-33 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
Yamaha black |
999-99999-99-00 |
— | ||
|
22
|
22
260-23318-40-00 Wire, Holder 1 |
260-23318-40-00 |
US $5.38 |
||
|
23
|
23
1M3-23346-00-00 Bolt 1 |
1M3-23346-00-00 |
US $8.64 |
||
| replacement | |||||
|
23
|
23
1M3-23346-01-00 Bolt 1 |
1M3-23346-01-00 |
US $6.46 |
||
|
24
|
24
2RV-23131-00-33
Cover, Upper 2
Yamaha black |
2RV-23131-00-33 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
Yamaha black |
999-99999-99-00 |
— | ||
|
25
|
25
2RV-23121-00-33
Cover, Upper 1
Yamaha black |
2RV-23121-00-33 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
Yamaha black |
999-99999-99-00 |
— | ||
