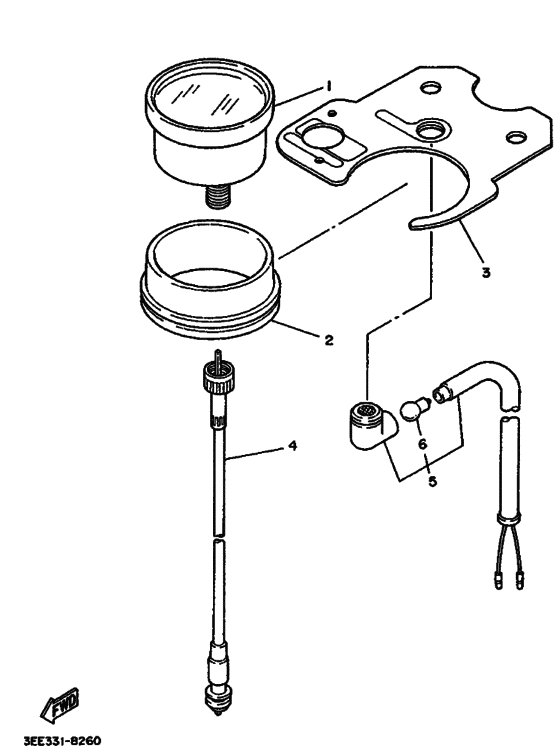

Meter Diagram Yamaha FS1
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3EE1
- Sales region
- Europe (999)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- FS1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3EE-H3510-00-00
Speedometer Assy
MBK |
3EE-H3510-00-00 |
— | ||
|
2
|
2
1TK-H3513-00-00
Damper
MBK |
1TK-H3513-00-00 |
— | ||
|
3
|
3
3EE-H3519-02-00
Bracket, Meter
MBK |
3EE-H3519-02-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
MBK |
999-99999-99-00 |
— | ||
|
4
|
4
3EE-83550-00-00
Speedometer Cable Assy
|
3EE-83550-00-00 |
— | ||
|
5
|
5
3EE-83530-00-00
Pilot Light Assy
|
3EE-83530-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S |
122-83516-10-00 |
US $3.29 |
||
| replacement | |||||
|
6
|
6
122-83516-10-XX
Bulb
|
122-83516-10-XX |
— | ||
