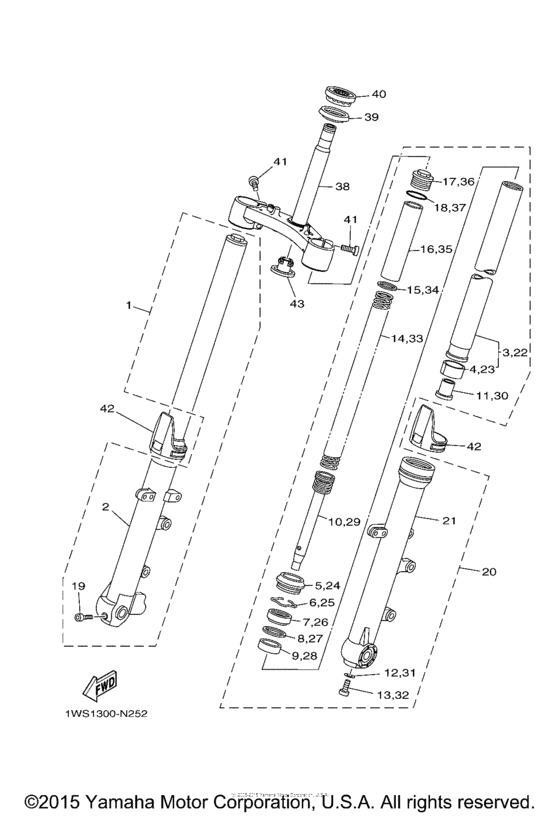

Front fork Diagram Yamaha FZ07 FZ-07

Year
2015
Model code
2RC2
Sales region
United States (California)
Базовая модель
FZ07FCGY
Engine Capacity
700
Model
FZ07

Difficulties in parts search?

Parts list
Front fork

Difficulties in parts search?

Front fork
Description OEM Part # Price
1
1

1WS-23103-00-00

Front Fork Assy (R.h)

1WS-23103-00-00

from US $497.74

replacement
1
1

1WS-23103-01-00

Front Fork Assy (R.h

1WS-23103-01-00

US $488.16

2
2

1WS-23136-00-00

Tube, Outer 2

1WS-23136-00-00

from US $307.39

replacement
2
2

1WS-23136-01-00

Tube, Outer 2

1WS-23136-01-00

US $307.39

3
3

1WS-23110-00-00

Inner Tube Comp. 1

1WS-23110-00-00

from US $218.84

4
4

5BN-23171-00-00

Piston, Front Fork

5BN-23171-00-00

from US $19.95

5
5

4EB-23144-00-00

Seal, Dust

4EB-23144-00-00

from US $13.36

6
6

26H-23156-00-00

Ring, Snap

26H-23156-00-00

from US $3.74

7
7

4EB-23145-01-00

Oil Seal

4EB-23145-01-00

from US $14.36

8
8

36Y-23146-10-00

Washer, Oil Seal

36Y-23146-10-00

from US $6.73

9
9

4FM-23125-40-00

Metal, Slide 1

4FM-23125-40-00

from US $20.64

10
10

1WS-23170-00-00

Cylinder Comp., Front Fork

1WS-23170-00-00

from US $73.77

11
11

4YR-23173-00-00

Spindle, Taper

4YR-23173-00-00

from US $21.99

12
12

509-23158-L0-00

Gasket

509-23158-L0-00

from US $3.44

13
13
278-23181-50-00
Bolt, Hexagon Socket Head

278-23181-50-00

replacement
13
13

3D8-23181-00-00

Bolt, Hexagon Socket Head

3D8-23181-00-00

from US $4.49

14
14

1WS-23141-00-00

Spring, Front Fork

1WS-23141-00-00

from US $32.61

15
15

3EN-23149-50-00

Washer, Spring Upper

3EN-23149-50-00

from US $2.12

16
16

3FW-23118-00-00

Spacer

3FW-23118-00-00

from US $9.99

17
17

1D0-23111-00-00

Bolt, Cap

1D0-23111-00-00

from US $29.17

18
18

43F-23188-10-00

O-Ring

43F-23188-10-00

from US $1.91

19
19

91314-08040-00

Bolt, Hexagon Socket Head

91314-08040-00

from US $2.99

20
20

1WS-23102-00-00

Front Fork Assy (L.h)

1WS-23102-00-00

from US $497.74

replacements
20
20

1WS-23102-01-00

Front Fork Assy (L.h

1WS-23102-01-00

from US $488.16

20
20

1WS-23102-03-00

1WS-23102-03-00

US $485.77

21
21

1WS-23126-00-00

Tube, Outer (L.h)

1WS-23126-00-00

from US $322.19

replacement
21
21

1WS-23126-01-00

Tube, Outer (L.h)

1WS-23126-01-00

from US $322.19

22
22

1WS-23110-00-00

Inner Tube Comp. 1

1WS-23110-00-00

from US $218.84

23
23

5BN-23171-00-00

Piston, Front Fork

5BN-23171-00-00

from US $19.95

24
24

4EB-23144-00-00

Seal, Dust

4EB-23144-00-00

from US $13.36

25
25

26H-23156-00-00

Ring, Snap

26H-23156-00-00

from US $3.74

26
26

4EB-23145-01-00

Oil Seal

4EB-23145-01-00

from US $14.36

27
27

36Y-23146-10-00

Washer, Oil Seal

36Y-23146-10-00

from US $6.73

28
28

4FM-23125-40-00

Metal, Slide 1

4FM-23125-40-00

from US $20.64

29
29

1WS-23170-00-00

Cylinder Comp., Front Fork

1WS-23170-00-00

from US $73.77

30
30

4YR-23173-00-00

Spindle, Taper

4YR-23173-00-00

from US $21.99

31
31

509-23158-L0-00

Gasket

509-23158-L0-00

from US $3.44

32
32
278-23181-50-00
Bolt, Hexagon Socket Head

278-23181-50-00

replacement
32
32

3D8-23181-00-00

Bolt, Hexagon Socket Head

3D8-23181-00-00

from US $4.49

33
33

1WS-23141-00-00

Spring, Front Fork

1WS-23141-00-00

from US $32.61

34
34

3EN-23149-50-00

Washer, Spring Upper

3EN-23149-50-00

from US $2.12

35
35

3FW-23118-00-00

Spacer

3FW-23118-00-00

from US $9.99

36
36

1D0-23111-00-00

Bolt, Cap

1D0-23111-00-00

from US $29.17

37
37

43F-23188-10-00

O-Ring

43F-23188-10-00

from US $1.91

38
38

1WS-23340-00-00

Under Bracket Comp

1WS-23340-00-00

from US $277.12

39
39

3FV-23462-00-00

Seal, Steering

3FV-23462-00-00

from US $16.90

40
40

933-99999-32-00

Bearing

933-99999-32-00

from US $36.95

41
41

91314-08030-00

Bolt, Hexagon Socket Head

91314-08030-00

from US $0.90

42
42

1WS-2331G-00-00

Cover

1WS-2331G-00-00

from US $5.98

43
43

4KM-23123-01-00

Cover, Under 1

4KM-23123-01-00

from US $8.68
