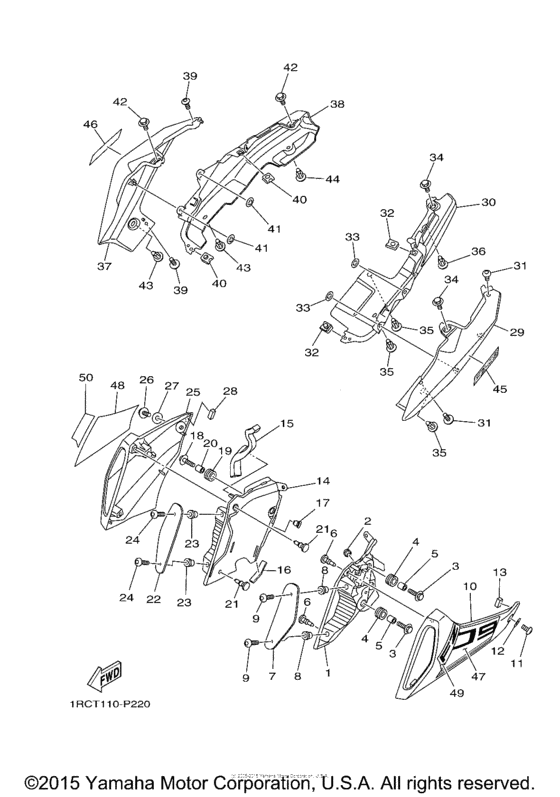

Side cover Diagram Yamaha FZ09 FZ-09
- Year
- 2015
- Model code
- 1RCT
- Sales region
- USA
- Базовая модель
- FZ09FS
- Engine Capacity
- 850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RC-2172E-00-00 Stay, Side Cover 1 |
1RC-2172E-00-00 |
from US $54.20 |
||
|
2
|
2
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
2
|
2
903-38071-80-00 Plug |
903-38071-80-00 |
from US $2.08 |
||
|
3
|
3
901-19062-67-00 Bolt, With Washer |
901-19062-67-00 |
US $1.56 |
||
| replacement | |||||
|
3
|
3
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
4
|
4
904-80140-03-00 Grommet |
904-80140-03-00 |
from US $1.81 |
||
|
5
|
5
90387-06057-00 Collar |
90387-06057-00 |
from US $2.77 |
||
|
6
|
6
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
7
|
7
1RC-2837N-00-00 Grill, Air Intake 1 |
1RC-2837N-00-00 |
from US $11.62 |
||
|
8
|
8
901-79055-23-00 Nut |
901-79055-23-00 |
from US $4.03 |
||
|
9
|
9
901-11050-39-00 Bolt, Hex. Socket Button |
901-11050-39-00 |
from US $3.54 |
||
|
10
|
10
1RC-2137W-00-P0 Scoop, Air 1Use for Color MAT BLACK 2 MBL2 / 0582 |
1RC-2137W-00-P0 |
from US $66.04 |
||
|
11
|
11
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $2.08 |
||
|
12
|
12
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.81 |
||
|
13
|
13
1RC-21747-00-00 Damper |
1RC-21747-00-00 |
from US $2.50 |
||
|
14
|
14
1RC-2174E-00-00 Stay, Side Cover 2 |
1RC-2174E-00-00 |
from US $54.85 |
||
|
15
|
15
905-20100-22-00 Damper, Plate |
905-20100-22-00 |
from US $1.28 |
||
|
16
|
16
905-20100-03-00 Damper, Plate |
905-20100-03-00 |
from US $0.99 |
||
|
17
|
17
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
17
|
17
903-38071-80-00 Plug |
903-38071-80-00 |
from US $2.08 |
||
|
18
|
18
901-19062-67-00 Bolt, With Washer |
901-19062-67-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
19
|
19
904-80140-03-00 Grommet |
904-80140-03-00 |
from US $1.81 |
||
|
20
|
20
90387-06057-00 Collar |
90387-06057-00 |
from US $2.77 |
||
|
21
|
21
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
22
|
22
1RC-2837N-00-00 Grill, Air Intake 1 |
1RC-2837N-00-00 |
from US $11.62 |
||
|
23
|
23
901-79055-23-00 Nut |
901-79055-23-00 |
from US $4.03 |
||
|
24
|
24
901-11050-39-00 Bolt, Hex. Socket Button |
901-11050-39-00 |
from US $3.54 |
||
|
25
|
25
1RC-2137X-00-P0 Scoop, Air 2Use for Color MAT BLACK 2 MBL2 / 0582 |
1RC-2137X-00-P0 |
from US $66.04 |
||
|
26
|
26
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $2.08 |
||
|
27
|
27
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.81 |
||
|
28
|
28
1RC-21747-00-00 Damper |
1RC-21747-00-00 |
from US $2.50 |
||
|
29
|
29
1RC-21711-00-P2 Cover, Side 1UR FOR MS1 |
1RC-21711-00-P2 |
US $41.81 |
||
|
29
|
29
1RC-21711-00-P4 Cover, Side 1Use for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
1RC-21711-00-P4 |
from US $41.81 |
||
|
29
|
29
1RC-21711-00-P3 Cover, Side 1UR FOR MNM3 |
1RC-21711-00-P3 |
US $41.81 |
||
|
30
|
30
1RC-21731-00-00 Cover, Side 3 |
1RC-21731-00-00 |
from US $55.68 |
||
|
31
|
31
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $2.08 |
||
|
32
|
32
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
32
|
32
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $2.08 |
||
|
33
|
33
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.70 |
||
|
34
|
34
90109-06174-00 Bolt |
90109-06174-00 |
from US $1.98 |
||
|
35
|
35
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.70 |
||
|
36
|
36
902-69070-14-00 Rivet |
902-69070-14-00 |
from US $1.28 |
||
|
37
|
37
1RC-21721-00-P3 Cover, Side 2UR FOR MNM3 |
1RC-21721-00-P3 |
US $41.81 |
||
|
37
|
37
1RC-21721-00-P4 Cover, Side 2Use for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
1RC-21721-00-P4 |
from US $41.81 |
||
|
37
|
37
1RC-21721-00-P2 Cover, Side 2UR FOR MS1 |
1RC-21721-00-P2 |
US $41.81 |
||
|
38
|
38
1RC-21741-00-00 Cover, Side 4 |
1RC-21741-00-00 |
from US $55.68 |
||
|
39
|
39
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $2.08 |
||
|
40
|
40
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
40
|
40
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $2.08 |
||
|
41
|
41
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.70 |
||
|
42
|
42
90109-06174-00 Bolt |
90109-06174-00 |
from US $1.98 |
||
|
43
|
43
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.70 |
||
|
44
|
44
902-69070-14-00 Rivet |
902-69070-14-00 |
from US $1.28 |
||
|
45
|
45
1RC-2163G-30-00 Emblem 1FOR MNM3 |
1RC-2163G-30-00 |
from US $8.22 |
||
|
46
|
46
1RC-2163G-30-00 Emblem 1FOR MNM3 |
1RC-2163G-30-00 |
from US $8.22 |
||
|
47
|
47
1RC-2173E-20-00 Graphic 1Use for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
1RC-2173E-20-00 |
from US $31.74 |
||
|
47
|
47
1RC-2173E-10-00 Graphic 1UR FOR MS1 |
1RC-2173E-10-00 |
US $45.79 |
||
|
48
|
48
1RC-2173F-10-00 Graphic 2UR FOR MS1 |
1RC-2173F-10-00 |
US $48.91 |
||
|
48
|
48
1RC-2173F-20-00 Graphic 2Use for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
1RC-2173F-20-00 |
from US $31.74 |
||
|
49
|
49
1RC-21737-00-00 EmblemUR FOR MS1 |
1RC-21737-00-00 |
US $11.97 |
||
|
49
|
49
1RC-21737-10-00 Emblemfor Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
1RC-21737-10-00 |
from US $8.64 |
||
|
50
|
50
1RC-21737-10-00 Emblemfor Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
1RC-21737-10-00 |
from US $8.64 |
||
|
50
|
50
1RC-21737-00-00 EmblemUR FOR MS1 |
1RC-21737-00-00 |
US $11.97 |
||
