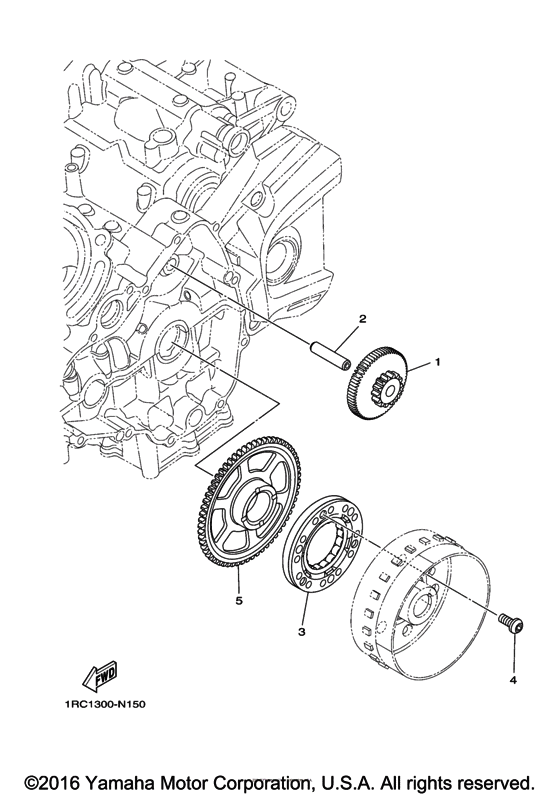

Starter Diagram Yamaha FZ09 FZ-09
- Year
- 2016
- Model code
- B876
- Sales region
- United States (California)
- Базовая модель
- FZ09GCB
- Engine Capacity
- 850
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RC-15512-00-00 Gear, Idler 1 |
1RC-15512-00-00 |
from US $57.16 |
||
|
2
|
2
5EB-15521-00-00 Shaft 1 |
5EB-15521-00-00 |
from US $8.05 |
||
| replacement | |||||
|
2
|
2
5MT-15521-00-00 Shaft 1 |
5MT-15521-00-00 |
from US $8.05 |
||
|
3
|
3
1RC-15590-00-00 Starter One-Way Assy |
1RC-15590-00-00 |
from US $93.88 |
||
|
4
|
4
90149-08030-00 Screw |
90149-08030-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
901-49080-31-00 Screw |
901-49080-31-00 |
from US $2.13 |
||
|
5
|
5
1RC-15515-00-00 Gear 3 |
1RC-15515-00-00 |
from US $79.03 |
||
| replacement | |||||
|
5
|
5
1RC-15515-10-00 GEAR 3 |
1RC-15515-10-00 |
from US $79.03 |
||
