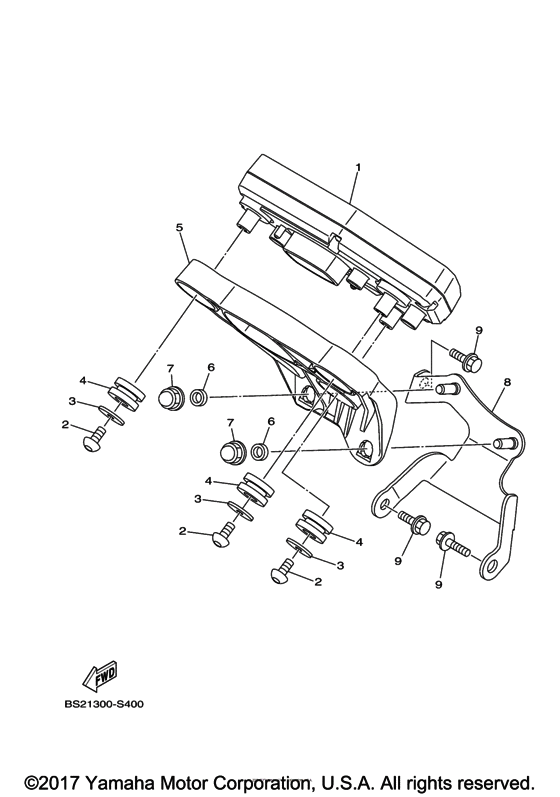

Meter Diagram Yamaha FZ09 FZ-09
- Year
- 2017
- Model code
- BS23
- Sales region
- USA
- Базовая модель
- FZ09HS
- Engine Capacity
- 850
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BS2-83500-20-00 METER ASSY |
BS2-83500-20-00 |
from US $642.84 |
||
|
2
|
2
90160-05017-00 Screw, Round Tapping |
90160-05017-00 |
from US $1.39 |
||
|
3
|
3
902-01050-36-00
Washer, Plate
|
902-01050-36-00 |
— | ||
| replacement | |||||
|
3
|
3
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
4
|
4
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $2.08 |
||
|
5
|
5
BS2-83559-00-00 COVER, METER |
BS2-83559-00-00 |
from US $13.82 |
||
|
6
|
6
90387-07015-00 COLLAR |
90387-07015-00 |
from US $1.28 |
||
|
7
|
7
90176-06009-00 NUT, CROWN |
90176-06009-00 |
from US $4.11 |
||
|
8
|
8
BS2-83519-00-00 BRACKET, METER |
BS2-83519-00-00 |
from US $13.74 |
||
|
9
|
9
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $1.18 |
||
